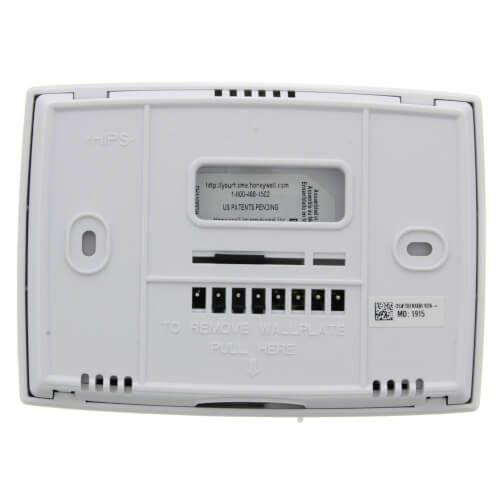

Honeywell Home TH1100DH1004 - PRO 1000 Non-Programmable, Heat Only, Horizontal Thermostat
Brand:
SKU
TH1100DH1004
Application:
Heat Only
Features:
Dimensions (Height x Width x Depth): 3 7/16" x 4 10/16" x 1 3/16" (87mm x 119mm x 30mm)
Mounting: Horizontal
Electrical Ratings: 20 to 30 Vac or 750 mV
Frequency: 50 Hz, 60 Hz
Stages: 1 Heat
Color: Premier White
Setting Temperature Range: Selectable 40°F to 90°F or 35°F to 90°F (4.5°C to 32°C or 1.5°C to 32°C) (Heat)
Switch Positions (System): HEAT-OFF

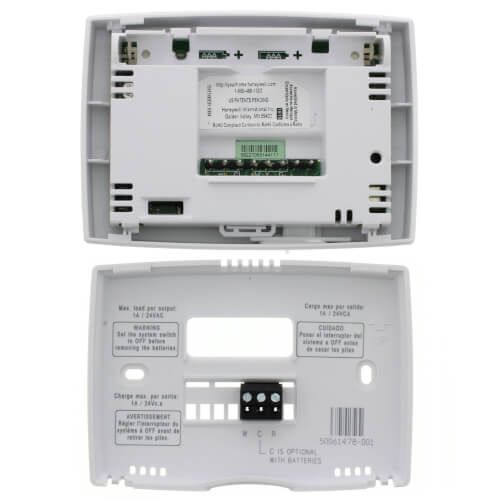

Terminal Designations: R, C, W
Power Method: Dual Powered: Battery or Hardwire
Display Size: 1.32 sq in.
Changeover: Manual
Operating Humidity Range: 5 to 90% RH, non-condensing
Cycles per Hour: Heating 2 - 6 CPH
Heat Current: 0.02 A to 1.0 A (running).
Application: Heat Only
Stages: 1 Heat
Programmability: Non-Programmable
Power Method: Dual Powered: Battery or Hardwire
Accuracy: +/- 1°F
Temperature Range (F): 40°F - 90°F, 35°F - 90°F
Mount: Horizontal
Frequency: 50 Hz, 60 Hz
User Interface: Push Button
Voltage: 24v, 750mV
