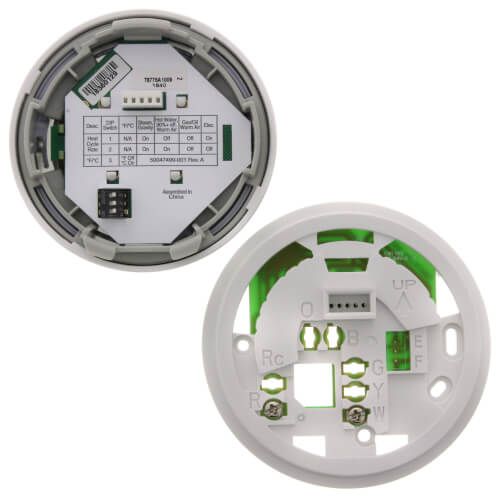

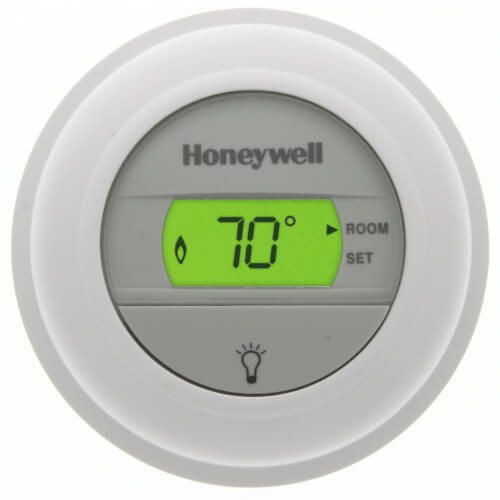

Honeywell T8775A1009 - Round Non-Programmable, Heat Only, Digital Thermostat
Brand:
SKU
T8775A1009
Thermostat
Type Digital Non-Programmable, 1-Heat
Cover Type Round
Color Premier White
Voltage Rating 20 to 30 Volt AC at 60 Hertz
Current Rating 0.02 to 1.5 Amp (Heat/Cool), 0.02 to 0.5 Amp (Fan)
Switch Type Electronic
Size 3-11/16 Inch Diameter x 1-7/16 Inch Depth
Display Size 0.75 Square Inch
Inrush Current 6 Amp (Cool), 3.5 Amp (Heat), 2.5 Amp (Fan)
Sensor Element Thermistor
Humidity 5 to 90 Percent Relative (Non-Condensing)
Accuracy +/- 1 Deg F
Power Method Powered Through System Heating Control
Terminal Designation R, W
Setting Temperature Rating 40 to 90 Deg F
Includes Wallplate, Resistor Assembly, Mounting Screw and Wall Anchor
