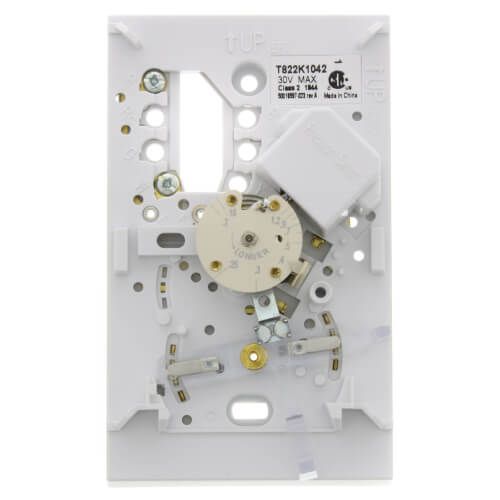

Honeywell Home T822K1042 - Mercury Free Heat Only Thermostat w/ Low Temperature Scale
Brand:
SKU
T822K1042
Thermostat
Type 2-Wire, Non-Programmable, Low Voltage, 1-Heat
Cover Type Rectangular Vertical, Vented
Color Premier White
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heat)
Switch Type SPST, Precision Snap Action
Size 2-7/8 Inch Width x 1-3/8 Inch Depth x 4-3/4 Inch Height
Sensor Element Bi-Metal
Switch Position Heat-Off (System)
Terminal Designation R, W
Accuracy +/- 2 Deg F
Setting Temperature Rating 35 to 85 Deg F
