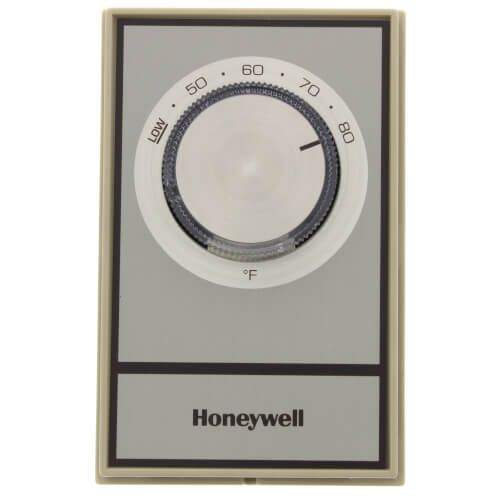

Honeywell Home T498A1810 - T498 Beige Electric Heat Thermostat
Brand:
SKU
T498A1810
Features:
Easy to install; color-coded leads.
Include thermometer. Include long-lasting Micro Switch mechanism; makes on temperature fall.
Rugged, plastic mounting base.
Mount on standard 2 x 4 in. outlet box or 4 x 4 in. junction box.
Select models include extra knob decal for recalibration, if necessary.
Specifications:
Amps (120V): 22, Amps (208V): 22, Amps (240V): 22, Amps (277V): 19
Application:
Heat Only, Electric Heat (Line Voltage)
Stages: 1 Heat
Programmability: Non-Programmable
User Interface: Mechanical
Mount: Vertical
Power Method: Hardwired
Voltage: 208v, 277v, 120v, 240v, Line voltage
Temperature Range (F): 40°F - 80°F
Differential: 3°F
Switch: SPST
Amperage: 22, 19
Wiring: 6" Copper Leadwires
Frequency: 60 Hz
Color: Beige
Height: 4-9/16"
Width: 2-7/8"
Depth (Inches): 1-15/16"
