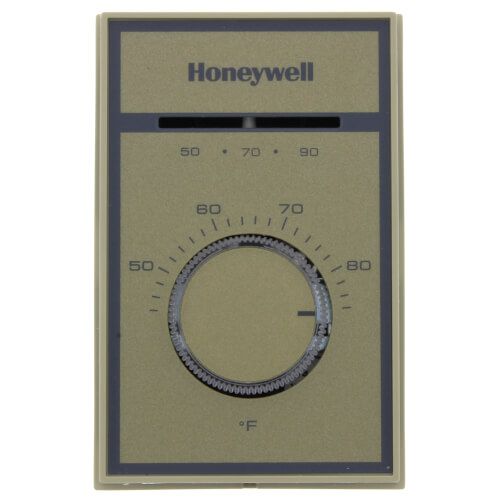

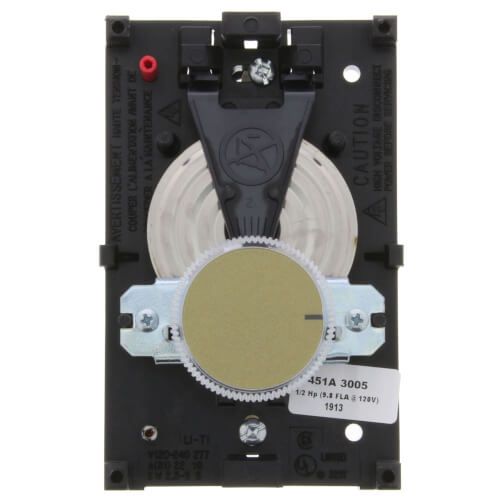

Honeywell T451A3005 - Light Duty Line Voltage Thermostats, 44-86F
Brand:
SKU
T451A3005
Thermostat
Type Line Voltage, Light Duty
Cover Type Rectangular Horizontal/Vertical, Locking
Color Champagne Gold (Faceplate), Beige (Cover)
Voltage Rating 120 to 277 Volt AC at 50/60 Hertz
Current Rating 9.8 Amp at 120 Volt AC, 5.6 Amp at 208 Volt AC, 4.9 Amp at 240 Volt AC, 4.2 Amp at 277 Volt AC (Full Load)
Switch Type SPST
Size 2-15/16 Inch Width x 1-1/2 Inch Depth x 4-1/2 Inch Height
Approval UL, CSA
Electrical Connection Flylead
Sensor Element Vapor Filled Dual Diaphragm
Setting Temperature Rating 44 to 86 Deg F
Application Control Line Voltage Valve, Motor, Contractor, Electric Heat, Element, Duct Furnace and Fan Coil Unit in Heating/Cooling Systems
Includes Vertical Scaleplate with Thermometer, Range Stops and Locking Cover Screw, Wall Plate, High Accuracy Dual Diaphragm Sensor
