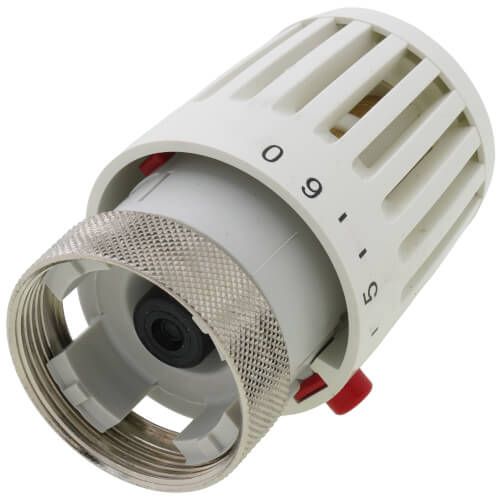

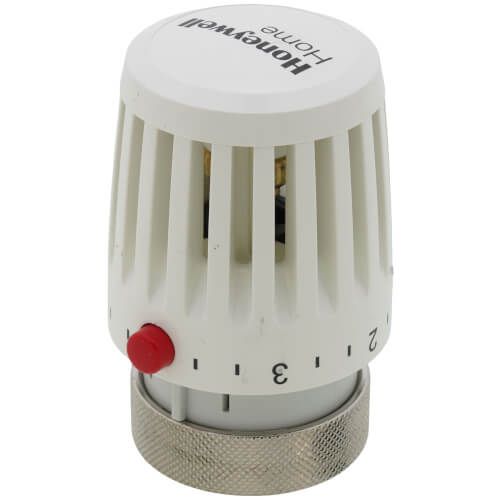

Honeywell Home T104A1040 - High Capacity Thermostatic Radiator Actuator - Integral Sensor
Brand:
SKU
T104A1040
Features:
Valves and actuators meet ASHRAE Standard 102-1989
For control of hot water or steam radiators, convectors or other hydronic heating units
Thermostatic actuator setpoint dial shows guide marks (1-5) and provides positive shutoff when turned fully clockwise (0)
Thermostatic actuator includes sensor and setpoint dial; components may be integral or connected by capillary tubes
Valve seat disc, made of resilient EPDM, ensures tight shutoff on hot water or low pressure steam systems
Nickel-plated brass cast valve body with working parts in cartridge insert for ease of service
No electrical connections or wiring required
All working parts replaceable while valve remains in service, in-line, under pressure
T104/V110 designed to meet higher capacity normally required of North American radiator systems — over twice the flow capacity of most competitive valves
Ratings: maximum temperature - 248°F; maximum system PSI - 150 PSI (hot water); 14 PSI (steam V100 series), 15 PSI (steam V110 series); maximum differential - 17 PSI
Application: Accessory
Sensor Type: Built-In
Used With: V110 Series
Width (Inches): 1-19/32"
Max Temp (F): 79°F
Min Temp (F): 43°F
Temperature Range (F): 43°F - 79°F
