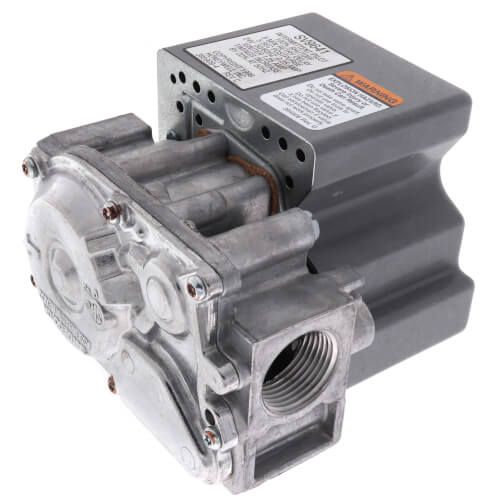

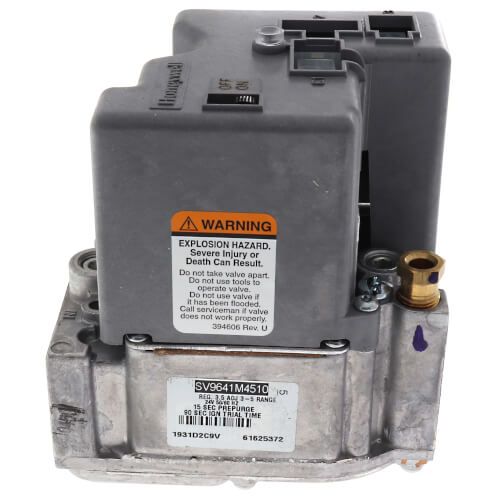

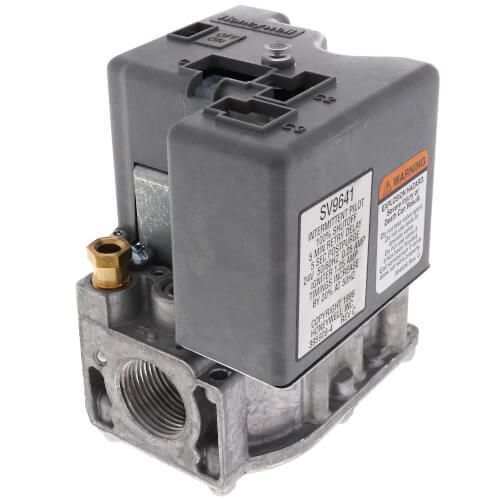

Resideo SV9641M4510 - 3/4" NPT Intermittent Hot Surface Pilot Ignition SmartValve
Brand:
SKU
SV9641M4510
Gas Control Valve
Type Standard Opening, Straight-Through
Nominal Size 3/4 Inch
End Connection Threaded x Threaded
End to End Distance 3.2 Inch
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Pilot Gas Outlet
Application Fan Assisted Combustion Gas Fired Appliance, Rooftop Furnace, Boiler, Unit/Infrared/Water Heater and Commercial Cooking Unit
Applicable Standard CSA
Overall Dimension 4.1 Inch Length x 4.9 Inch Height
Ignition Type Intermittent Hot Surface Pilot
Flow Capacity 30000 to 415000 BTU/Hour
Pressure Tapping Size 1/8 Inch Threaded
Pressure Regulator Set Point 3.5 Inch WC
