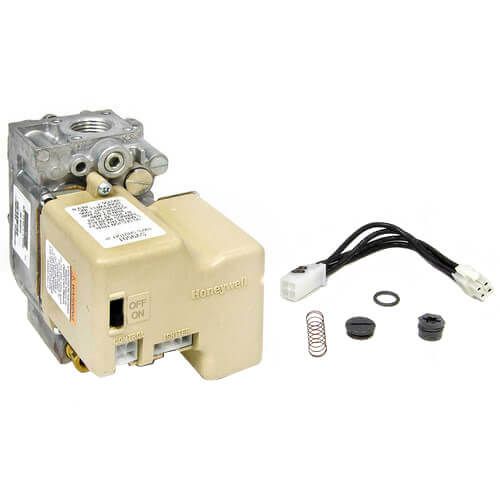

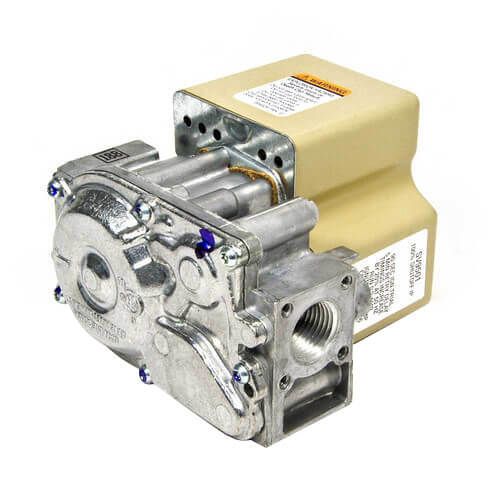

Resideo SV9602P4840 - Intermittent Hot Surface Pilot Ignition SmartValve Control - Step Opening
Brand:
SKU
SV9602P4840
Gas Control Valve
Type Step Opening, Straight-Through
Nominal Size 3/4 Inch
End Connection Threaded x Threaded
End to End Distance 3.2 Inch
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Extension Harness
Application Gas Fired Appliance, Residential Combustion Control, Residential Rooftop Furnace, Residential Boiler, Unit/Infrared/Space Heater, Commercial Cooking Unit
Applicable Standard CSA
Overall Dimension 4.1 Inch Length x 4.9 Inch Height
Ignition Type Intermittent Hot Surface Pilot
Ignition Sequence Intermittent Pilot
Flame Failure Response Time 1.6 Second at 3 Microamp
Ignition Trial Time 90 Second
Prepurge Time 30 Second
Capacity 30000 to 415000 BTU/Hour
Pressure Tapping 1/8 Inch Threaded
Pressure Regulator Set Point 10 Inch WC
Mounting 0 to 90 Degree Vertical Installation
