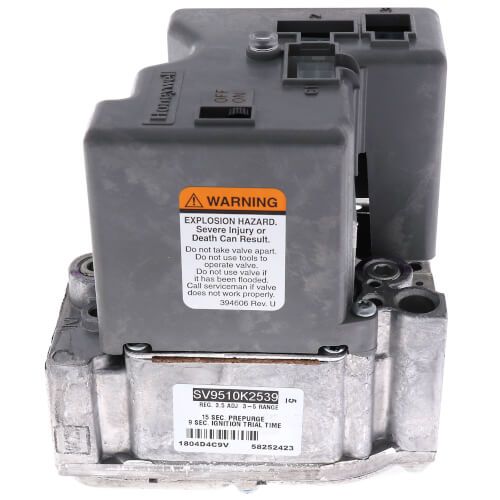

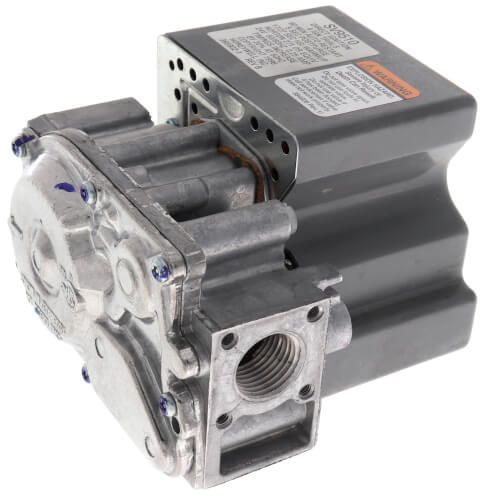

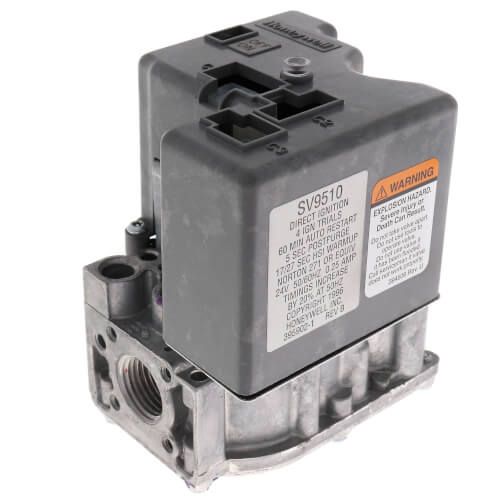

Resideo SV9510K2539 - Slow Opening SmartValve Control
Brand:
SKU
SV9510K2539
Gas Control Valve
Type Slow Opening, Straight-Through
Nominal Size 1/2 Inch
End Connection Threaded x Threaded
End to End Distance 3.2 Inch
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Natural to Liquid Propane Conversion Kit
Application Gas Fired Appliance, Residential Combustion Control, Rooftop Furnace, Boiler, Unit/Infrared/Water Heater and Commercial Cooking Appliance
Applicable Standard CSA
Overall Dimension 4.1 Inch Length x 4.9 Inch Height
Ignition Type Direct Hot Surface
Flame Failure Response Time 2 Second at 5 Microamp
Ignition Trial Time 9 Second
Prepurge Time 15 Second
Capacity 20000 to 200000 BTU/Hour
Pressure Tapping 1/8 Inch Threaded
Pressure Regulator Set Point 3.5 Inch WC
Mounting 0 to 90 Degree Vertical Installation
