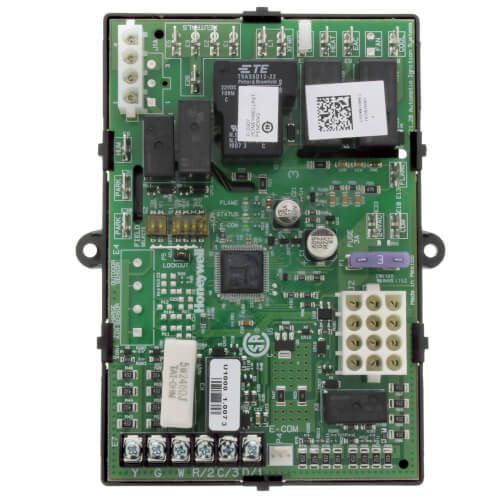

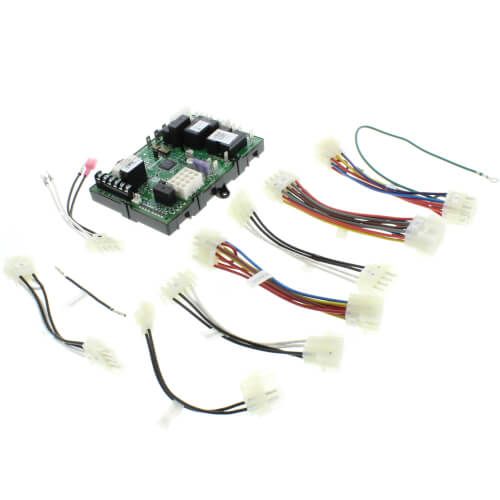

Resideo S9200U1000 - Universal Hot Surface Ignition Integrated Furnace Control
Brand:
SKU
S9200U1000
Ignition Control Module
Type Universal, Hot Surface
Flame Sense Type Integrated
Ignition Sequence 2 or 3-Trial
Ignition Trial Time 4/6/8 Second
Prepurge Time 30 Second
Flame Failure Response Time 2 Second at 1 Microamp
Power Rating 24 (Low)/120 (Line) Volt AC at 60 Hertz
Temperature Rating -40 to 175 Deg F
Application 1-Stage Warm Air Furnace
Igniter Current Rating 5 Amp at 120 Volt AC (Resistive)
HSI Warm Up Time 17/27 or 30/30 Second
Includes (3) LED
