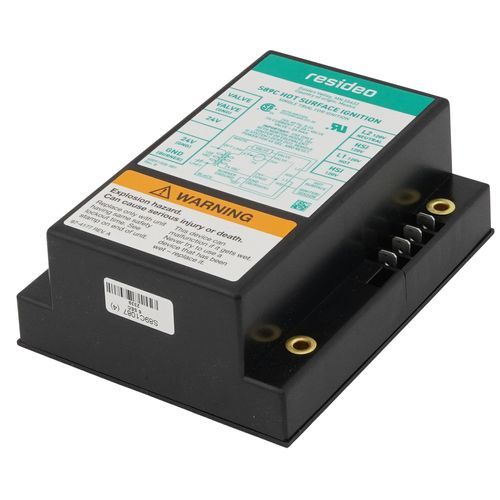

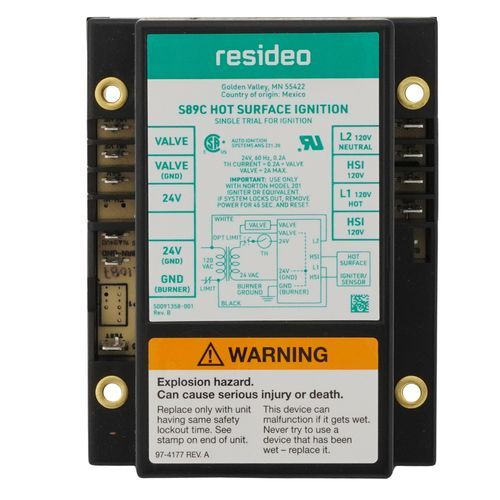

Resideo S89C1087 - Single Rod Hot Surface Ignition Control w/ 6 sec trial and lockout timing
Brand:
SKU
S89C1087
Ignition Control Module
Type Direct Hot Surface
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type Single Rod
Ignition Source Line Voltage Hot Surface Element
Ignition Sequence 1-Trial
Ignition Trial Time 6 Second
Flame Failure Response Time 2 Second at 2.5 Microamp
Valve Rating 2 Amp at 24 Volt AC
Power Rating 24 Volt AC at 60 Hertz
Size 1-15/16 Inch Length x 4-1/16 Inch Width x 5-1/4 Inch Height
Temperature Rating -40 to 175 Deg F
Application Heat Furnace and Heating Appliance
Approval CSA
Lockout Timing 6 Second
Resideo S89C1087 - Single Rod Hot Surface Ignition Control w/ 6 sec trial and lockout timing
Ignition Control Module
Type Direct Hot Surface
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type Single Rod
Ignition Source Line Voltage Hot Surface Element
Ignition Sequence 1-Trial
Ignition Trial Time 6 Second
Flame Failure Response Time 2 Second at 2.5 Microamp
Valve Rating 2 Amp at 24 Volt AC
Power Rating 24 Volt AC at 60 Hertz
Size 1-15/16 Inch Length x 4-1/16 Inch Width x 5-1/4 Inch Height
Temperature Rating -40 to 175 Deg F
Application Heat Furnace and Heating Appliance
Approval CSA
Lockout Timing 6 Second
