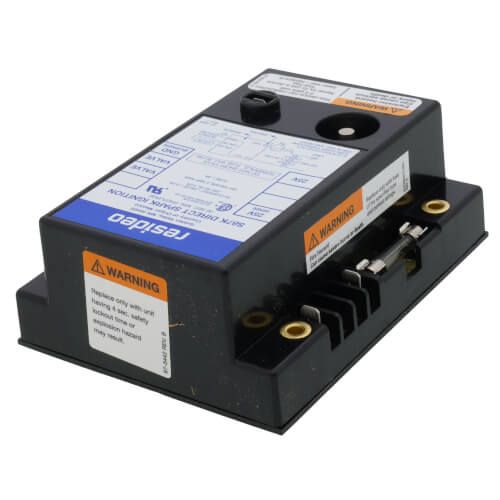

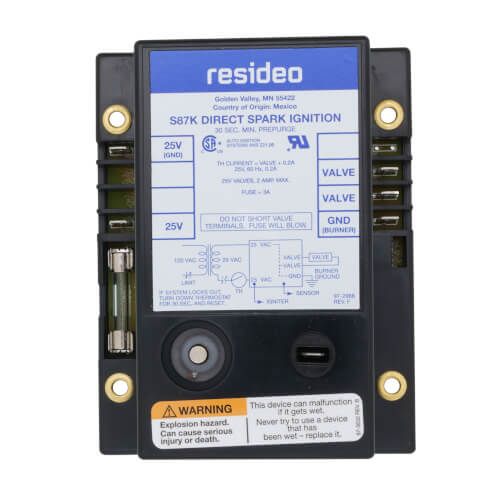

Resideo S87K1008 - Two Rod Direct Spark Ignition Control w/ 4 Second Trial and Lockout Timing
Brand:
SKU
S87K1008
Ignition Control Module
Type Direct Spark, Electronic, Pilot
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type Two Rod
Ignition Source Internal High Voltage Spark Generator
Ignition Sequence Multiple Trial
Ignition Trial Time 4 Second
Prepurge Time 30 Second
Flame Failure Response Time 0.8 Second at 5 Microamp
Valve Rating 2 Amp at 24 Volt AC
Power Rating 24 Volt AC at 60 Hertz
Size 4-1/16 Inch Width x 1-15/16 Inch Length x 5-1/4 Inch Height
Temperature Rating -40 to 175 Deg F
Application Gas Fired Furnace, Boiler, Heating Appliance
Approval CSA
Lockout Timing 4 Second
Flame Failure Re-Ignition Time 0.8 Second
