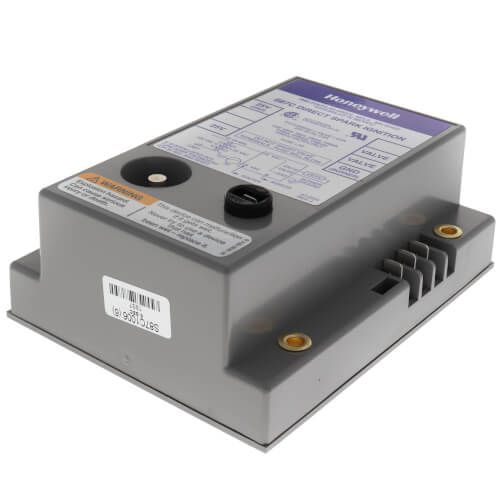

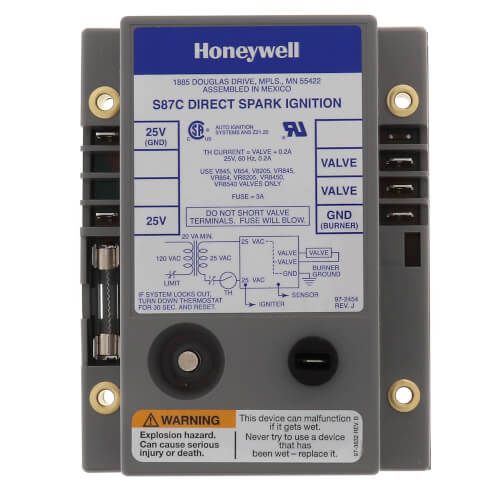

Resideo S87C1006 - Two Rod Direct Spark Ignition Control w/ 6 Second Trial and Lockout Timing
Brand:
SKU
S87C1006
Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
Ignition System Type: Direct Spark Ignition
Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
Typical Gas Control: VR8205, VR8305
Type of Gas: Natural or LP
Ignition Source: Internal high voltage spark generator
Prepurge: None
Ignition Trials To Lockout: 1
Typical Ignition Hardware: Q347A
Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Max Ambient Temperature: -40 F to +175 F
Includes: Alarm terminal
Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
