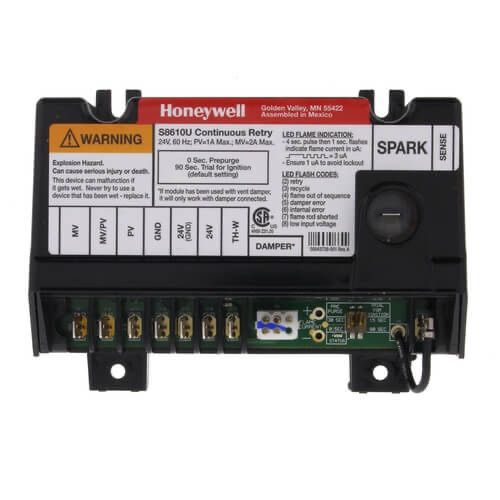

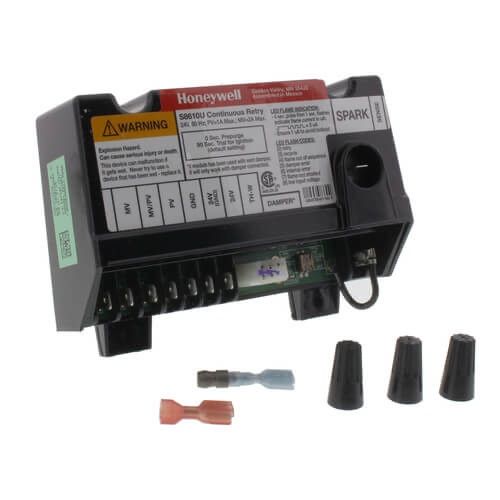

Honeywelll S8610U3009 - Intermittent Pilot Control

SKU
S8610U3009
Ignition System Type: Intermittent Pilot
Ignition Sequence: Continous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Typical Gas Control: VR8204, VR8304
Type of Gas: Natural or LP
Flame Sense: Single Rod or Two Rods
Ignition Source: Internal high voltage spark generator
PrePurge: Configurable to 30 seconds or no prepurge
Ignition Trials To Lockout: continuous retry
Lockout Timing: Configurable to 15 seconds or 90 seconds
Ignition Trial Time (sec): continuous retryMaximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165F; 1A Pilot, 1A Main @ 175F
Typical Ignition Hardware: Q345, Q3451, Q3452
Dimensions: 3-15/16" high x 5-7/16" wide x 2-5/8" deep
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Frequency: 50 Hz
Maximum Ambient Temperature: -40F to +165F
Approvals, Canadian Standards Association: Design CertifiedIncludes: Damper connection with automatic vent damper plug
Tradeline Value: Super Tradeline
Between Trial Time (sec): 5 minute delay after failed trial for ignition
Flame Failure Response Time (sec): 2 seconds maximum

Honeywelll S8610U3009 - Intermittent Pilot Control

AvailabilityIn stock (1732)
SKU
S8610U3009
Ignition System Type: Intermittent Pilot
Ignition Sequence: Continous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Typical Gas Control: VR8204, VR8304
Type of Gas: Natural or LP
Flame Sense: Single Rod or Two Rods
Ignition Source: Internal high voltage spark generator
PrePurge: Configurable to 30 seconds or no prepurge
Ignition Trials To Lockout: continuous retry
Lockout Timing: Configurable to 15 seconds or 90 seconds
Ignition Trial Time (sec): continuous retryMaximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165F; 1A Pilot, 1A Main @ 175F
Typical Ignition Hardware: Q345, Q3451, Q3452
Dimensions: 3-15/16" high x 5-7/16" wide x 2-5/8" deep
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Frequency: 50 Hz
Maximum Ambient Temperature: -40F to +165F
Approvals, Canadian Standards Association: Design CertifiedIncludes: Damper connection with automatic vent damper plug
Tradeline Value: Super Tradeline
Between Trial Time (sec): 5 minute delay after failed trial for ignition
Flame Failure Response Time (sec): 2 seconds maximum
$124.88
