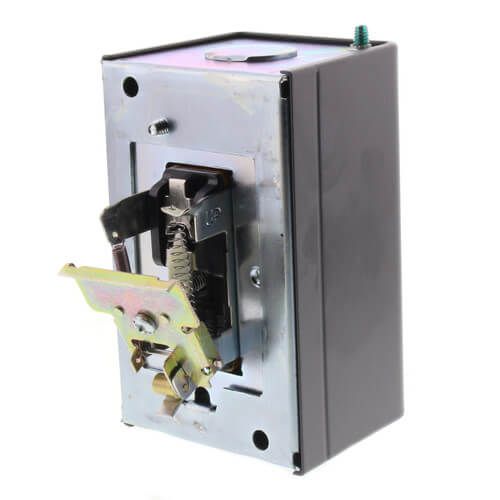

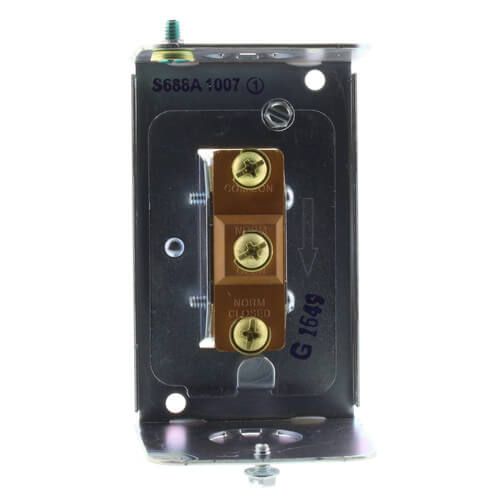

Honeywell Home S688A1007 - Sail Switch with 5 in. wide sail
Brand:
SKU
S688A1007
Air Cleaner Sail Switch
Voltage Rating 24/120/240 Volt AC
Current Rating 2 Amp at 24/120 Volt AC, 1 Amp at 240 Volt AC (NO), 1 Amp at 24/120 Volt AC, 0.5 Amp at 240 Volt AC (NO) Full Load, 12 Amp at 24/120 Volt AC, 6 Amp at 240 Volt AC (NO), 6 Amp at 24/120 Volt AC, 3 Amp at 240 Volt AC (NC) Locked Rotor, 5 Amp at 24/120 Volt AC, 2.5 Amp at 240 Volt AC (NO), 2.5 Amp at 24/120/240 Volt AC (NC) Resistive
Contact Configuration SPDT
Body Material Polyester Film
Temperature Rating 125 Deg F (Switch), 170 Deg F (Sail)
Size 3-3/4 Inch Width x 2 Inch Depth x 2-15/16 Inch Height
Application Air Cleaner, Air Flow Switch, Humidifier, Multi-Speed Fan, Inaccessible Air Handler, Fan Motor
Approval UL, CSA
Insertion Length 10 Inch
Operating Velocity 75 to 250 Foot per Minute
