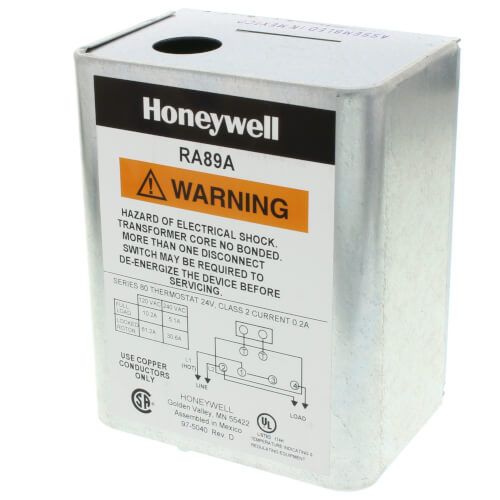

Resideo RA89A1074 - 1 Zone 120V Switching Relay w/ Internal Transformer, 1 SPST Line Relay
Brand:
SKU
RA89A1074
Hydronic Switching Relay
Item Switching Relay
Switch Type Intermediate SPST
Overall Dimensions 4-1/4 Inch Width x 2-5/16 Inch Depth x 5-1/4 Inch Height
Current Rating 10.2 Amp at 120 Volt AC and 5.1 Amp at 240 Volt AC (Full Load), 61.2 Amp at 120 Volt AC and 30.6 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC and 6 Amp at 240 Volt AC (Resistive)
Input Supply Rating 5 Watt at 120 Volt AC 50/60 Hertz
Inclusions/Features Integral Transformer, Enclosure
Application Hydronic Control
Applicable Standard UL, CSA
Coil Rating 24 Volt AC 50/60 Hertz 0.4 Amp
Connection Type 2-Wire Control Circuit
Ambient Temperature 115 Deg F at 60 Hertz, 105 Deg F at 50 Hertz
