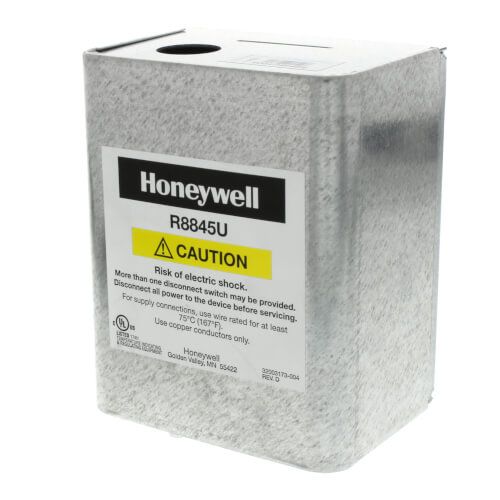

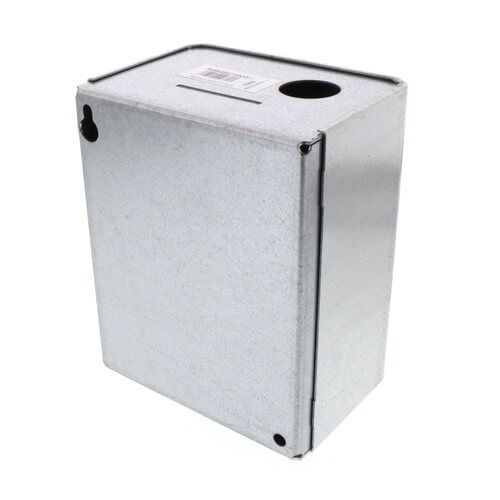

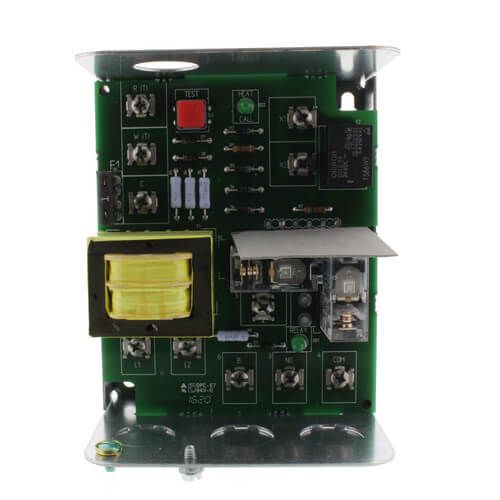

Resideo R8845U1003 - Universal Switching Relay w/ Internal Transformer
Brand:
SKU
R8845U1003
Universal Hydronic Switching Relay
Type AC Operated
Contact Configuration SPST
Contact Voltage Rating 120 Volt AC
Contact Current Rating 7/44.4 Amp at 120 Volt AC (Full Load)
Coil Voltage 24 Volt AC at 60 Hertz
Terminal Type #8 Captivated Screw Terminal
Mounting Surface
Overall Dimension 4-7/16 Inch Width x 3-1/2 Inch Depth x 6-1/4 Inch Height
Transformer Voltage Rating 24 Volt AC (Secondary)
Temperature Rating -20 to 120 Deg F
Humidity 0 to 90 Percent RH
Includes Integral Transformer, Enclosure
