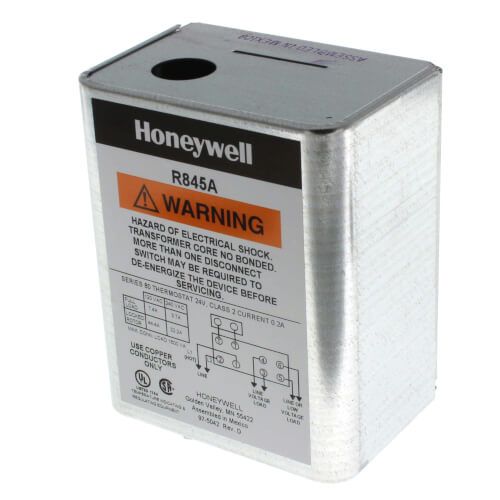

Resideo R845A1030 - Switching Relay w/ Internal Transformer DPST Line Voltage Relays
Brand:
SKU
R845A1030
Switching Relay
Type AC Operated
Contact Configuration DPST
Contact Voltage Rating 120/240 Volt AC at 50/60 Hertz
Contact Current Rating 7.4 Amp at 120 Volt AC, 3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC, 22.2 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC, 6 Amp at 240 Volt AC (Resistive)
Coil Voltage 24 Volt AC at 50/60 Hertz
Terminal Type 2-Wire
Approval UL, CSA
Overall Dimension 4-1/4 Inch Width x 2-5/16 Inch Depth x 5-1/4 Inch Height
Pilot Duty Rating 50 Volt Amp at 24 Volt AC (Secondary)
Coil Current Rating 0.4 Amp
Temperature Rating 115 Deg F at 60 Hertz
Includes Integral Transformer
Application Hydronic Control
