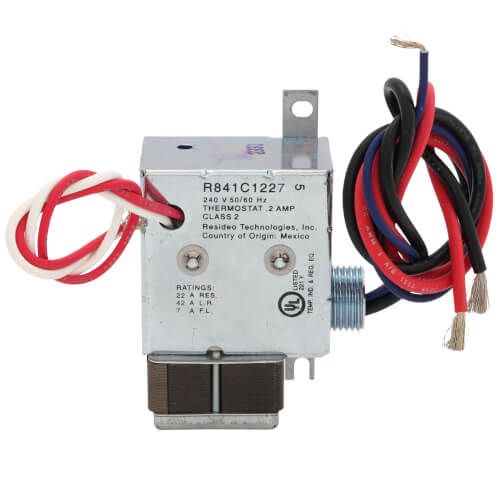

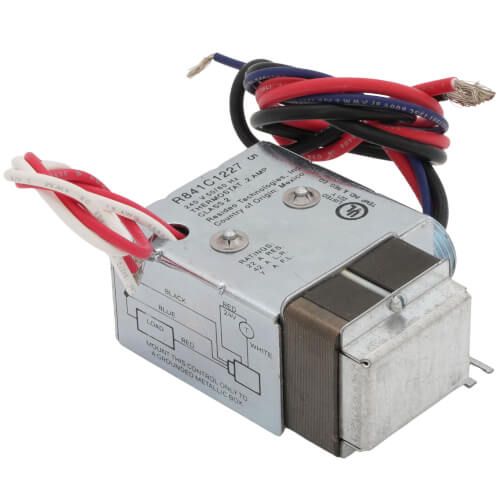

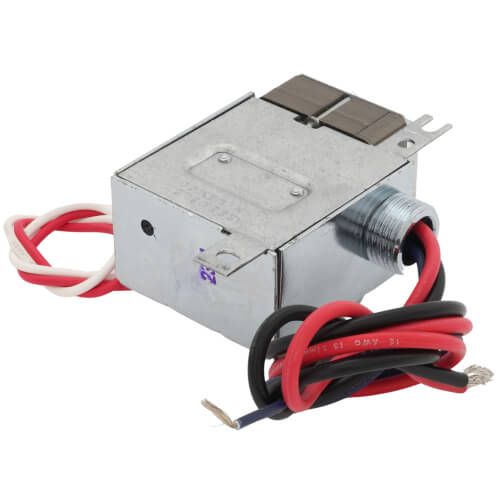

Honeywell Home R841C1227 - Electric Heater Relay w/ SPST Switching
Brand:
SKU
R841C1227
Heater Relay
Item Heater Relay
Type AC Operated
Actuation Type Electric
Switch Type SPST
Overall Dimensions 2-13/16 Inch Width x 1-1/2 Inch Depth x 3-7/8 Inch Height
Current Rating 7 Amp at 208/240/277 Volt AC and 14 Amp at 120 Volt AC (Full Load), 42 Amp at 208/240/277 Volt AC and 84 Amp at 120 Volt AC (Locked Rotor), 22 Amp at 120/208/240 Volt AC and 19 Amp at 277 Volt AC (Resistive)
Input Supply Rating 24 Volt AC 50/60 Hertz (Coil)
Temperature Rating -20 to 150 Deg F
Inclusions/Features 1/2 Inch Male Conduit Bushing
Application Heating Equipment, Baseboard, Ceiling Cable and Duct Heater
Applicable Standard UL, CSA
