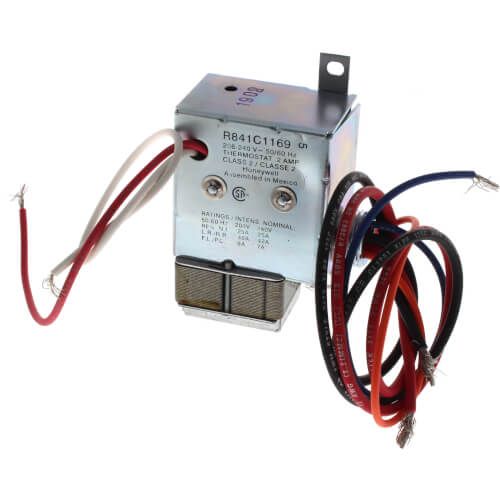

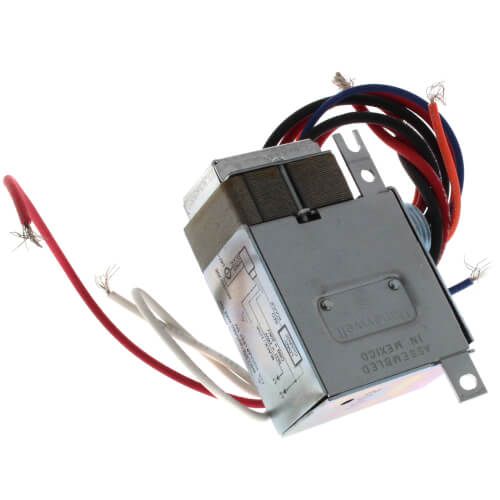

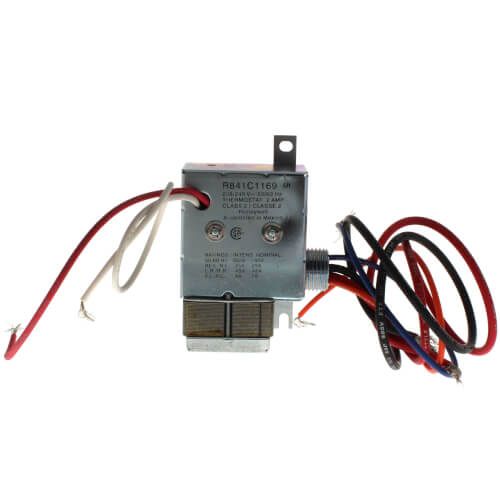

Honeywell Home R841C1169 - 208/240 V Electric Heater Relay w/ SPST Switching
Brand:
SKU
R841C1169
Electric Heating Relay
Type AC Operated
Coil Voltage 208/240 Volt AC
Contact Voltage Rating 120/208/240/277 Volt AC at 50/60 Hertz
Contact Current Rating 7/14 Amp (Full Load), 84/42 Amp (Locked Rotor), 22/19 Amp (Resistive Load)
Contact Configuration SPST
Terminal Type Lead Wire
Approval UL, CSA
Overall Dimension 2-13/16 Inch Width x 1-1/2 Inch Depth x 3-7/8 Inch Height
Temperature Rating -20 to 150 Deg F
Includes 1/2 Inch Male Conduit Bushing, Integral Transformer
