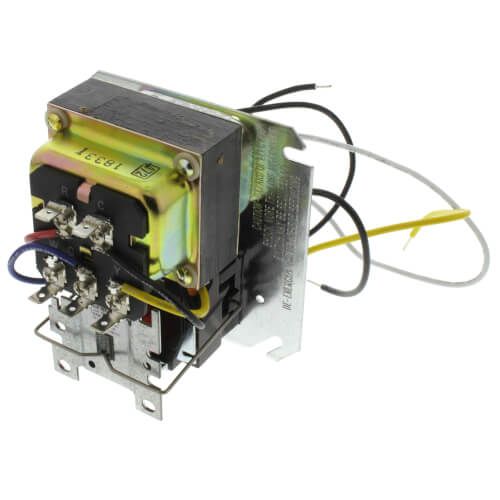

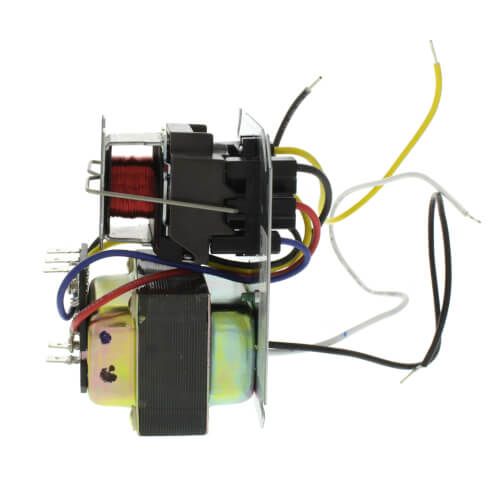

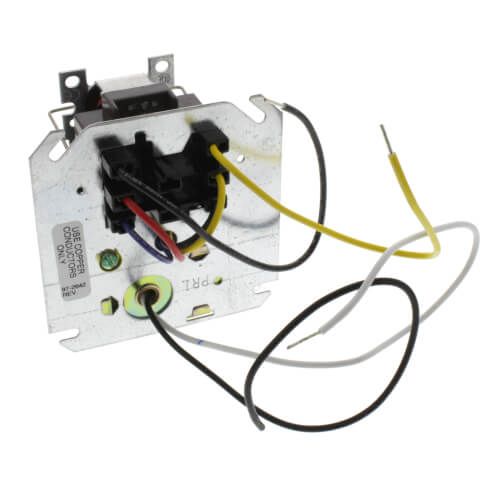

Resideo R8285D5001 - 50 VA Fan Center w/ DPST Switch Includes R8222U
Brand:
SKU
R8285D5001
Fan Control Center
Type AC Operated
Contact Voltage Rating 120 Volt AC at 50/60 Hertz
Contact Current Rating 12 Amp (Full Load), 60 Amp (Locked Rotor)
Contact Configuration DPST
Terminal Type Lead Wire
Mounting 4 Inch x 4 Inch Junction Box
Approval UL, CSA
Overall Dimension 4-1/2 Inch Width x 2-13/16 Inch Depth x 4-3/16 Inch Height
Coil Rating 20 Volt Amp Maximum (Inrush), 9 Volt Amp (Sealed)
Power Rating 11 Watt, 3/4 HP
Supply Rating 50 Volt Amp, 26.5 Volt (Secondary)
