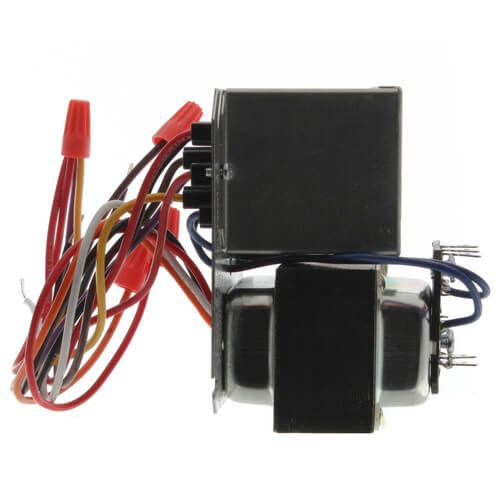

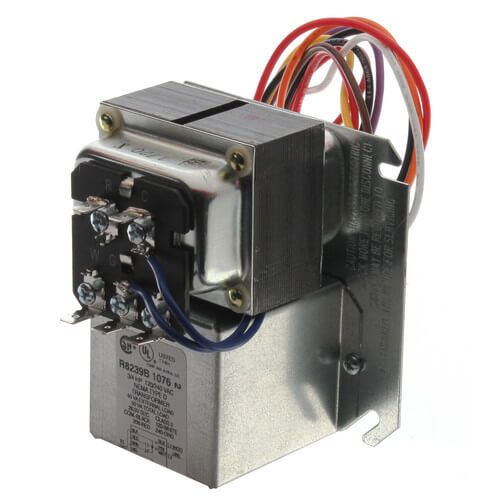

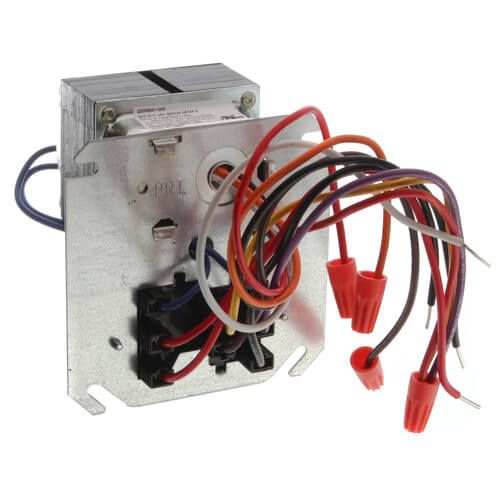

Resideo R8239B1076 - 50 VA Fan Center w/ DPDT Switching Action, Includes R8222D
Brand:
SKU
R8239B1076
Fan Control Center
Type AC Operated
Contact Voltage Rating 120/208/240 Volt AC at 50/60 Hertz
Contact Configuration DPDT
Terminal Type Lead Wire
Mounting 4 Inch x 4 Inch Junction Box
Enclosure NEMA D
Approval UL, CSA
Overall Dimension 4-3/16 Inch Width x 3-3/32 Inch Depth x 4-1/2 Inch Height
Coil Rating 20 Volt Amp Maximum/17 Volt Amp Nominal (Inrush), 10 Volt Amp Maximum/9 Volt Amp Nominal (Sealed)
Power Rating 12 Watt, 3/4 HP
Supply Rating 50 Volt Amp, 26.5 Volt (Secondary)
