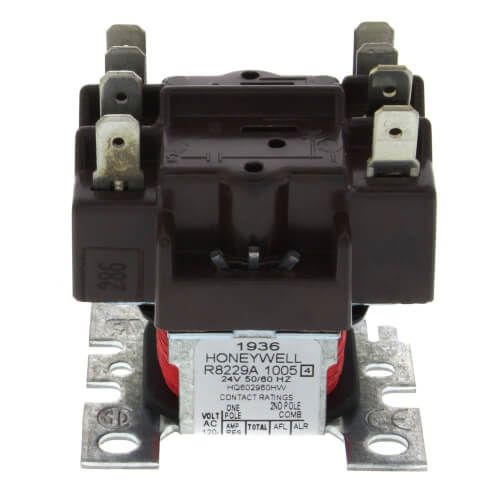

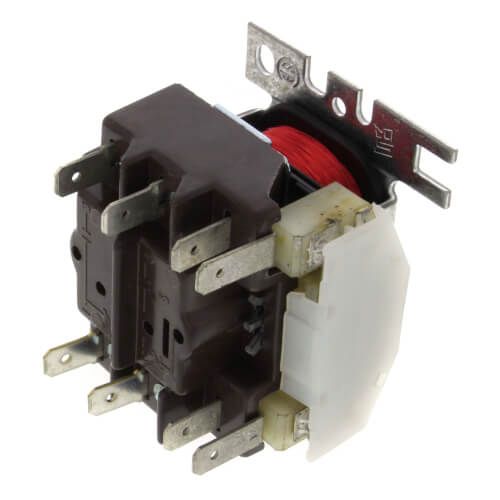

Resideo R8229A1005 - 24v Electric Heater Relay w/ DPST Switching
Brand:
SKU
R8229A1005
Electric Heater Relay
Type AC Operated
Coil Voltage 24 Volt AC at 60 Hertz
Contact Voltage Rating 120/208/240/277/480/600 Volt AC
Contact Current Rating 7/3.5/2.8 Amp (Full Load), 35/17.5/14 Amp (Locked Rotor), 25/12.5/10 Amp (Resistive Load)
Contact Configuration DPST, NO
Terminal Type #10 Head Screw
Mounting Screw
Approval UL, CSA
Overall Dimension 2-3/32 Inch Width x 2-1/4 Inch Depth x 2-3/16 Inch Height
Temperature Rating -40 to 175 Deg F
