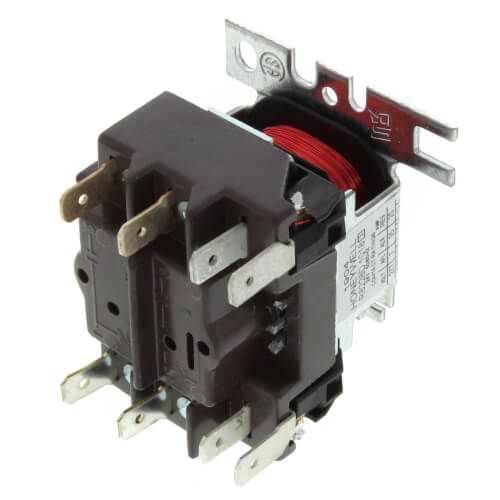

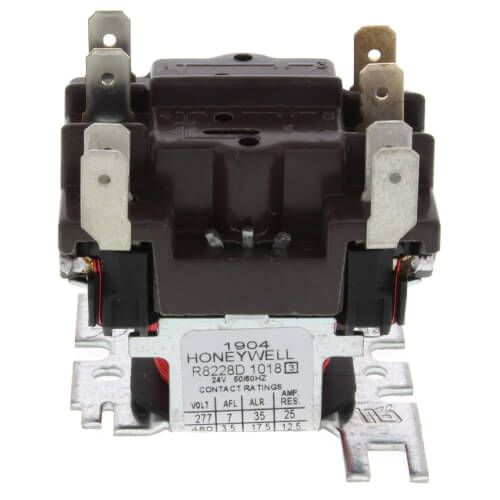

Resideo R8228D1018 - 24v General Purpose Relay w/ DPST N.O Switching
Brand:
SKU
R8228D1018
General Purpose Relay
Type AC Operated
Contact Configuration DPST, NO
Contact Voltage Rating 120/208/240/277/480 Volt AC
Contact Current Rating 3/5.5 Amp (Full Load), 8/25 Amp (Locked Rotor), 12.5/25 Amp (Resistive)
Coil Voltage 24 Volt AC
Terminal Type 1/4 Inch Quick Connect
Approval UL, CSA
Overall Dimension 2-5/32 Inch Width x 2-3/8 In Depth x 1-7/8 Height
Frequency Rating 50/60 Hertz
Temperature Rating -29 to 68 Deg C
Application Air Conditioning Equipment, Refrigeration, Vending Machine
