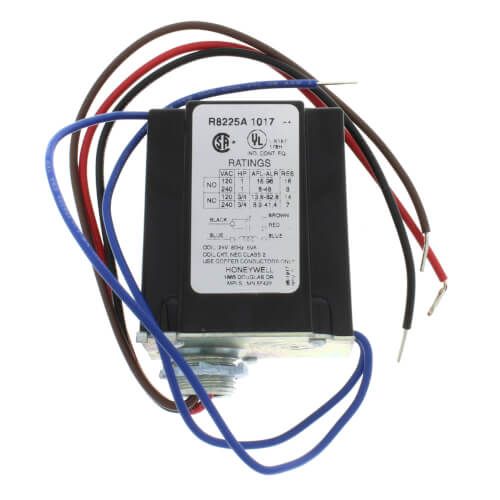

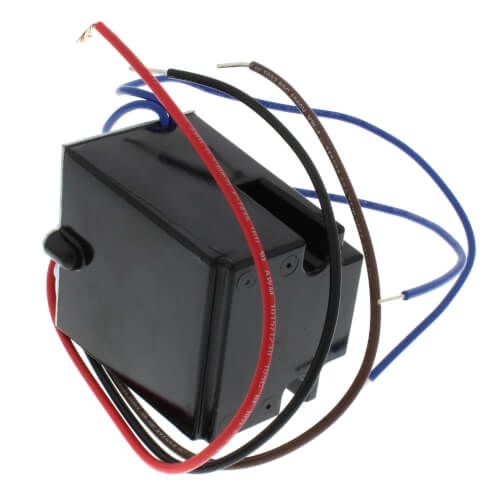

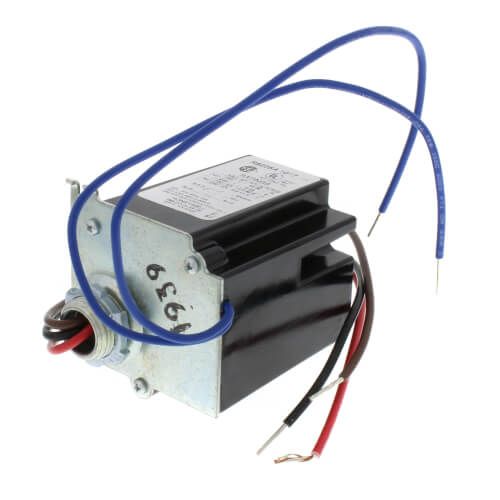

Resideo R8225A1017 - 24 V Fan Relay with SPDT Switching
Brand:
SKU
R8225A1017
Fan Relay
Type AC Operated
Contact Configuration SPDT
Contact Voltage Rating 120/240 Volt AC
Contact Current Rating 3 Amp at 120 Volt AC, 2 Amp at 240 Volt AC (Full Load/Resistive), 18 Amp at 120 Volt AC, 12 Amp at 240 Volt AC (AIR)
Coil Voltage 24 Volt AC at 50/60 Hertz
Terminal Type Lead Wire
Mounting Surface
Approval UL, CSA
Overall Dimension 2-1/2 Inch Width x 3-7/16 Inch Depth x 2-11/16 Inch Height
Temperature Rating 115 Deg F
Application Refrigeration, Air Conditioning Equipment, Vending Machine
