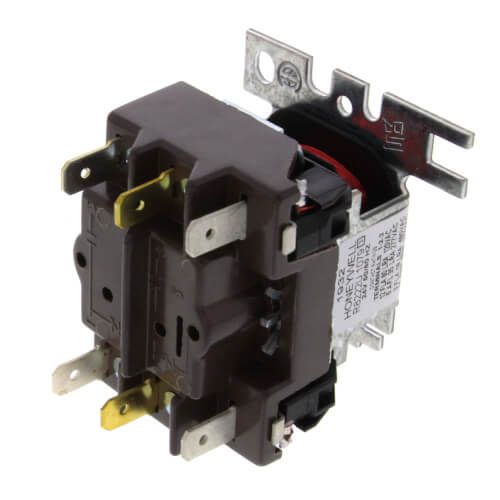

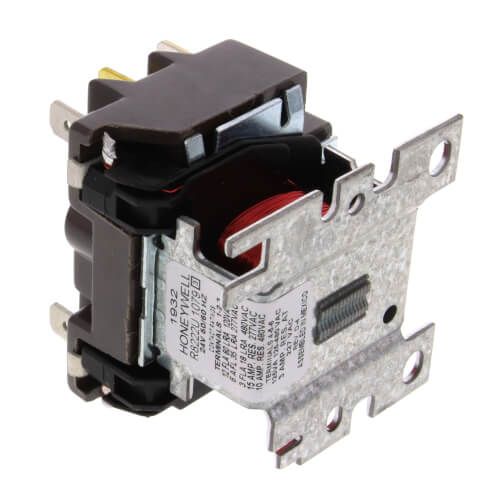

Resideo R8222U1079 - 24 V General Purpose Relay with DPST N.O. Switching
Brand:
SKU
R8222U1079
General Purpose Switching Relay
Type AC Operated
Contact Configuration DPST
Contact Voltage Rating 208/120/240/277/480 Volt AC at 50/60 Hertz
Contact Current Rating 3 Amp at 480 Volt AC, 6 Amp at 208/240/277 Volt AC, 12 Amp at 120 Volt AC (Full Load), 60 Amp at 120 Volt AC, 18 Amp at 480 Volt AC, 35 Amp at 208/240/277 Volt AC (Locked Rotor), 15 Amp at 120/208/240/277 Volt AC, 10 Amp at 480 Volt AC (Resistive)
Coil Voltage 24 Volt at 50/60 Hertz
Terminal Type 1/4 Inch Quick Connect
Approval UL, CSA
Overall Dimension 2-7/64 Inch Width x 2-3/8 Inch Depth x 1-55/64 Inch Height
Pilot Duty Rating 3 Volt Amp at 24/120/480 Volt AC (Minimum), 25 Volt Amp at 24 Volt AC, 125 Volt Amp at 120/240/480 Volt AC (Maximum), 3 Amp at 277 Volt AC (Resistive), 0.25 Amp at 0.25 to 12 Volt DC (NO)
Temperature Rating -20 to 155 F
Application Refrigeration, Air Conditioning Equipment, Vending Machine
