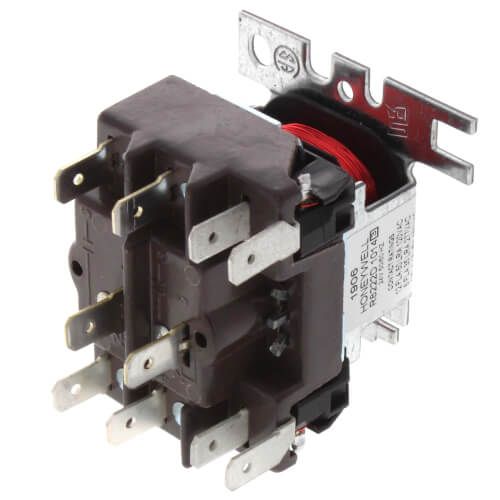

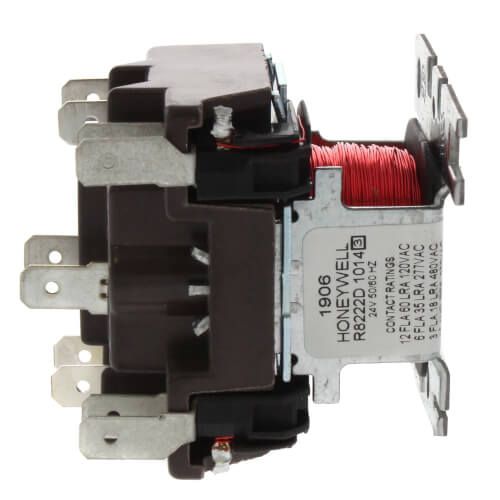

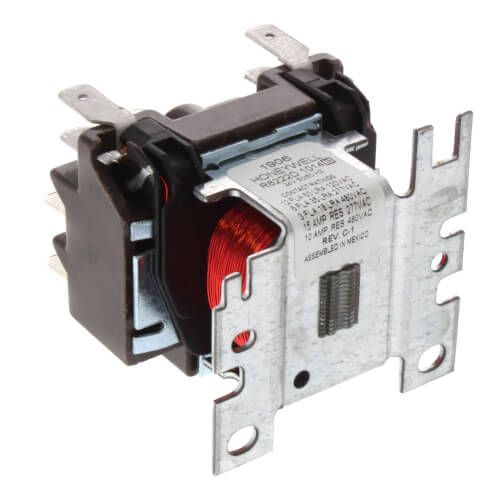

Resideo R8222D1014 - 24V General Purpose Relay with DPDT Switching
Brand:
SKU
R8222D1014
Application: Air Conditioning
Voltage: 24v
Type: DPDT
Wiring: 18" Leadwires
Electrical Ratings (AFL): 6 A @ 240 VAC, 6 A @ 277 VAC, 12 A @ 120 VAC,
3 A @ 480 VAC
Electrical Ratings (ALR): 35 A @ 240 VAC, 35 A @ 277 VAC, 18 A @ 480 VAC, 60 A @ 120 VAC
Hertz: 50, 60
Pilot Duty Rating: 3-25 VA @ 480 Vac, 3-25 VA @ 120 Vac, 3-25 VA @ 24 Vac
Height: 1-7/8"
Width: 2-5/32"
Depth (Inches): 2-3/8"
Temperature Range (F): -20°F to 155°F
