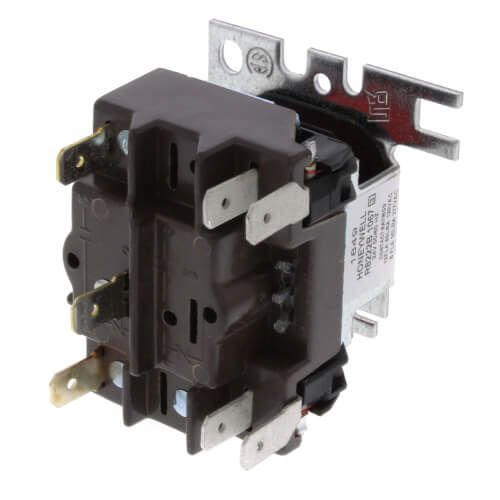

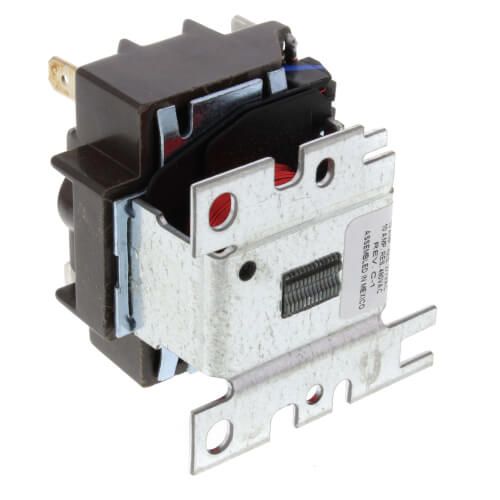

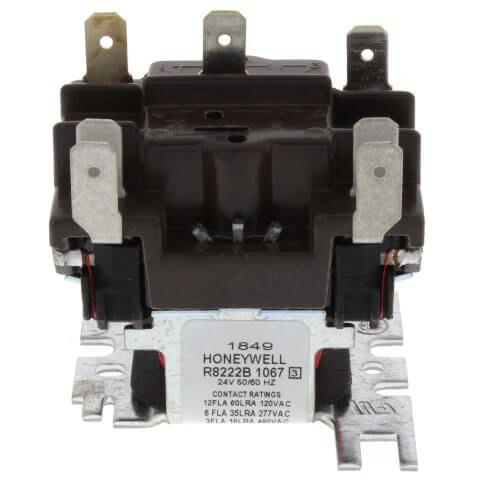

Honeywell R8222B1067 - 24V General Purpose Relay with SPDT Switching
Brand:
SKU
R8222B1067
Application: Air Conditioning
Voltage: 24v
Type: SPDT
Wiring: 1/4" Quick Connects
Electrical Ratings (AFL): 12 A @ 120 VAC, 3 A @ 480 VAC, 6 A @ 240 VAC, 6 A @ 277 VAC
Electrical Ratings (ALR): 18 A @ 480 VAC, 35 A @ 277 VAC, 35 A @ 240 VAC, 60 A @ 120 VAC
Hertz: 50, 60
Pilot Duty Rating: 3-25 VA @ 24 Vac, 3-25 VA @ 480 Vac, 3-25 VA @ 120 Vac
Height: 1-7/8"
Width: 2-5/32"
Depth (Inches): 2-3/8"
Temperature Range (F): -20°F to 155°F
