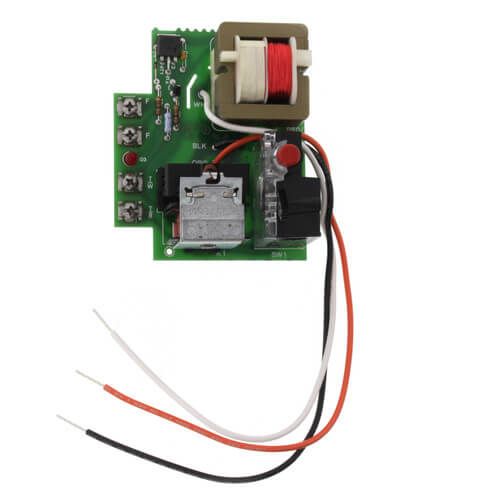

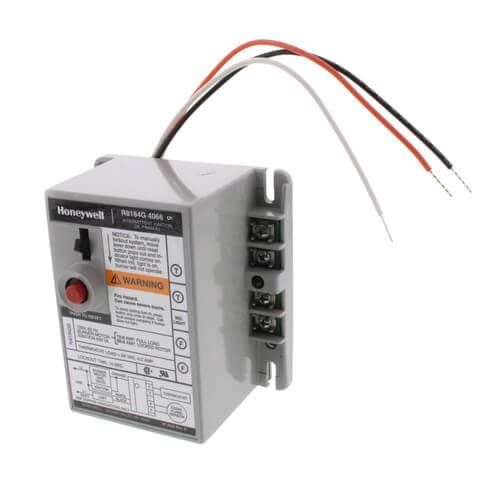

Resideo R8184G4066 - Protectorelay Oil Burner Control with 15 Seconds Lock Out Timing
Brand:
SKU
R8184G4066
Oil Burner Control
Flame Establishing Period 15 Second
Pilot Type Intermittent
Voltage Rating 120/240 Volt AC at 50/60 Hertz
Operating Temperature -40 to 130 Deg F
Size 4-1/8 Inch Width x 2-1/2 Inch Depth x 4-3/8 Inch Height
Approval UL, CSA
Current Rating 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 60 Amp at 120 Volt AC, 30 Amp at 240 Volt AC (Locked Rotor)
Mounting 4 Inch x 4 Inch Standard Junction Box/Direct Mount
