Provides automatic, nonrecycling control of an intermittent ignition oil burner system.
Features:

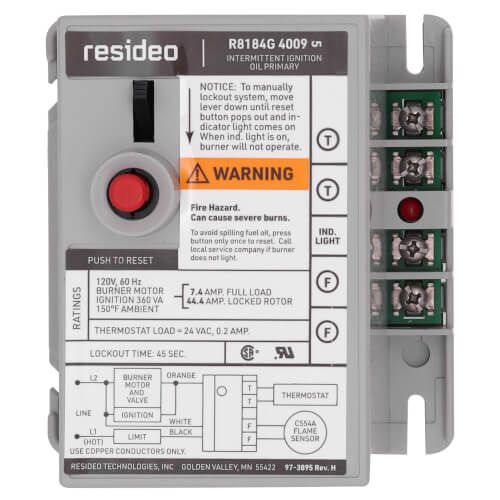

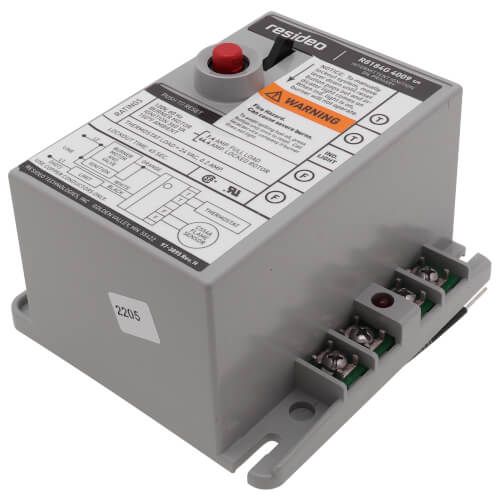

Description: Protectorelay Oil Burner Control with 45 seconds lock out timing
Ignition Type: Intermittent
Timing, Safety Switch: 45 sec.

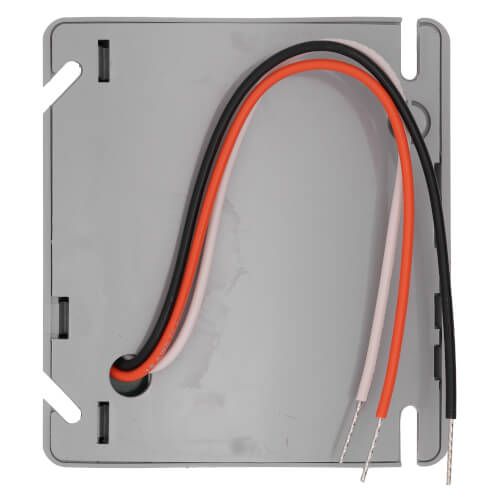

Mounting Bracket: For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
Electrical Ratings (Full Load): 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
Electrical Ratings (Locked Rotor): 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
Alarm Load Ratings (Pilot Duty): 75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
Alarm Load Ratings (resistive): 1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
Dimensions: 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
Temperature Range: -40 F to +130 F
Comments: With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.
Specifications:
Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
Solid state flame sensing circuit.
LED on terminal strip indicates system lockout.
Remote lockout indication available on some models.
Enclosed safety switch with external reset button.
Manual trip lever opens safety switch for system maintenance.
Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
Lockout Timing: 45 Seconds
