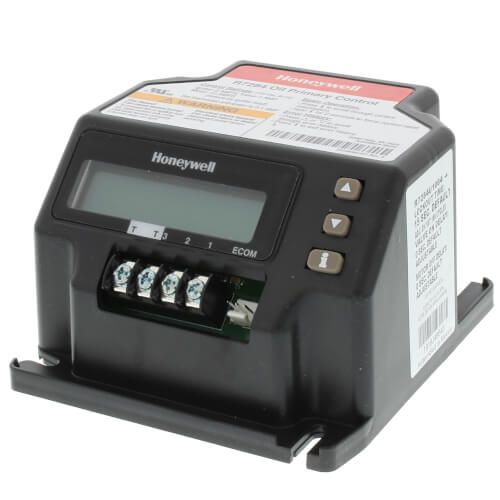

Resideo R7284U1004 - Universal Digital Electronic Oil Primary
Brand:
SKU
R7284U1004
Burner Oil Primary
Item Oil Primary
Type Universal, Digital, Programmable
Actuation Type Electronic
Overall Dimensions 4-5/32 Inch Length x 4-11/32 Inch Width x 2-1/2 Inch Height
Current Rating 7.4 Amp at 120 Volt AC and 3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC and 22.2 Amp at 240 Volt AC (Locked Rotor)
Input Supply Rating 120/240 Volt AC
Temperature Rating -40 to 147 Deg F
Media Handled Oil
Inclusions/Features Selectable Valve and Blower Delay, 2-Line LCD Display
Application Residential Combustion Control
Applicable Standard UL, CUL
Safety Switch Timing 15/30/45 Second
Ignition Type Interrupted and Intermittent
Mounting Type Junction Box

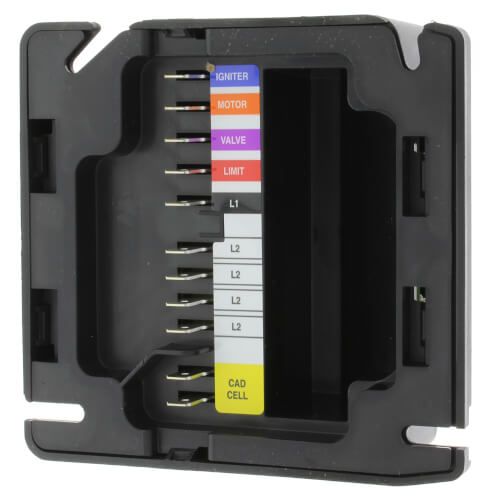

Connection Type Burner Motor/Oil Valve/Ignition/Cad Cell/Limit/Thermostat/Alarm
