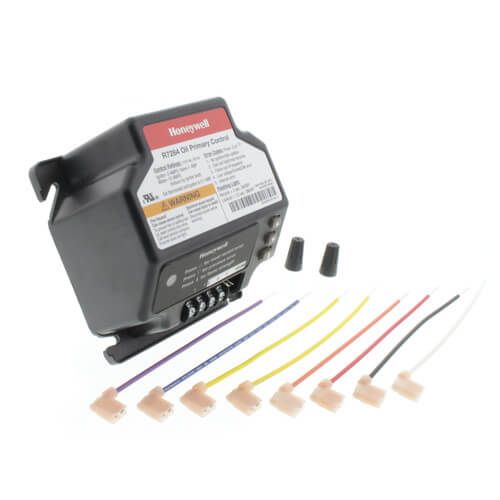

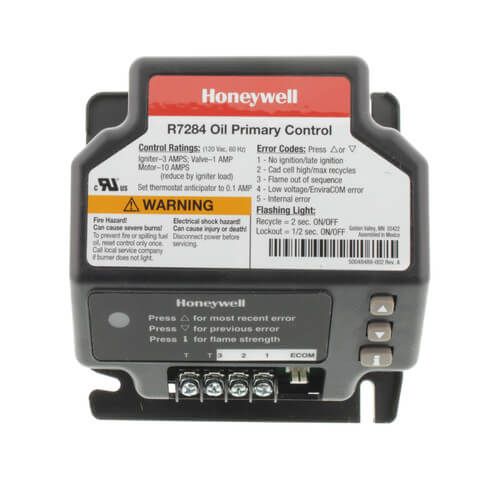

Resideo R7284B1024 - Universal Digital Electronic Oil Primary w/ Status Indicator Light
Brand:
SKU
R7284B1024
Ignition Oil Primary Control
Type Interrupted, Electronic
Size 4-5/32 Inch Length x 4-11/32 Inch Width x 2-1/2 Inch Height
Temperature Rating -40 to 147 Deg F
Application Residential Oil Fired Burner, Boiler, Forced Air Furnace, Water Heater
Approval UL, CUL
Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor)
Safety Switch Timing 15 Second
Display Type LED

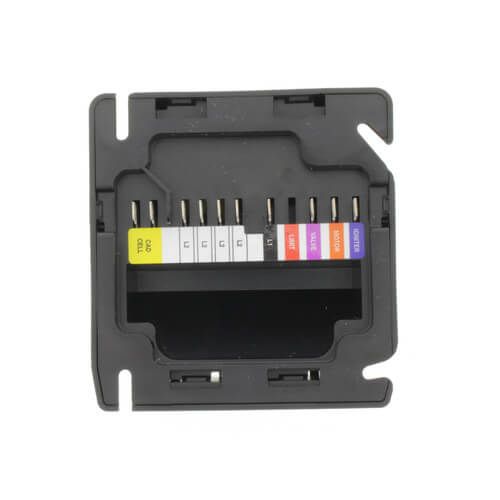

Mounting Junction Box on Main Burner
Resideo R7284B1024 - Universal Digital Electronic Oil Primary w/ Status Indicator Light
Ignition Oil Primary Control
Type Interrupted, Electronic
Size 4-5/32 Inch Length x 4-11/32 Inch Width x 2-1/2 Inch Height
Temperature Rating -40 to 147 Deg F
Application Residential Oil Fired Burner, Boiler, Forced Air Furnace, Water Heater
Approval UL, CUL
Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor)
Safety Switch Timing 15 Second
Display Type LED
Mounting Junction Box on Main Burner
