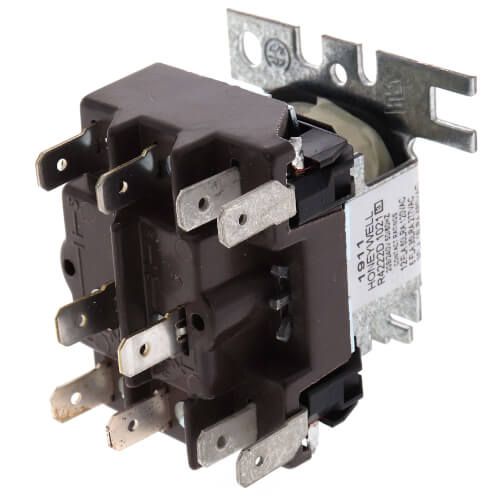

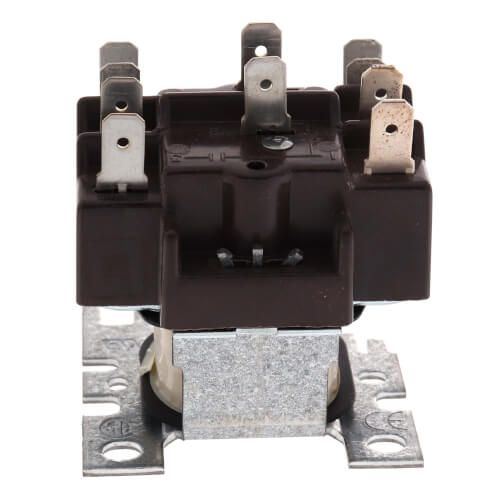

Resideo R4222D1021 - 208/240V General Purpose Relay w/ DPDT Switching
Brand:
SKU
R4222D1021
General Purpose Switching Relay
Type AC Operated
Contact Configuration DPDT
Contact Voltage Rating 120/208/240/277/480 Volt AC at 50/60 Hertz
Contact Current Rating 3 Amp at 480 Volt AC, 6 Amp at 208/240/277 Volt AC, 12 Amp at 120 Volt AC (Full Load), 18 Amp at 480 Volt AC, 35 Amp at 208/240/277 Volt AC, 60 Amp at 120 Volt AC (Locked Rotor), 10 Amp at 480 Volt AC, 20.8 Amp at 120/208/240/277 Volt AC (Resistive)
Coil Voltage 208/240 Volt AC at 50/60 Hertz
Terminal Type 1/4 Inch Quick Connect
Approval UL, CSA
Overall Dimension 2-5/32 Inch Width x 2-3/8 Inch Depth x 1-7/8 Inch Height
Pilot Duty Rating 3 Volt Amp at 24/120/480 Volt AC (Minimum), 25 VA at 24 Volt AC, 125 VA at 120/240/480 Volt AC (Maximum)
Temperature Rating -20 to 155 Deg F
Application Refrigeration, Air Conditioning Equipment, Vending Machine
