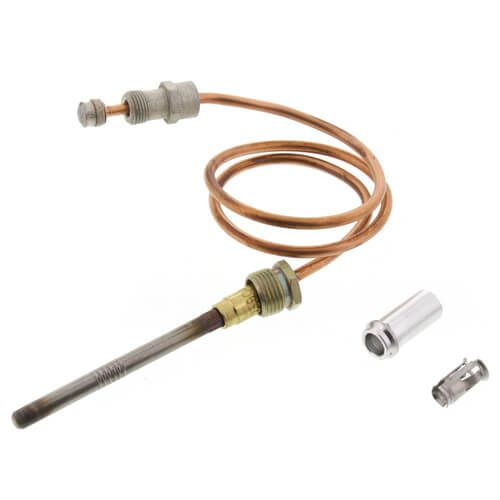

Resideo Q390A1095 - 18" Thermocouple
Brand:
SKU
Q390A1095
Thermocouple
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 18 Inch
Connection Type 11/32 Inch-32 Male Connector Nut
Application Standing Pilot Gas Fired Heating System
Approval CSA
Voltage Rating 30 Millivolt, 26 to 32 Millivolt (Open Circuit Output)
Resistance 0.02 Ohm
Includes Adapter and Push-In Clip
