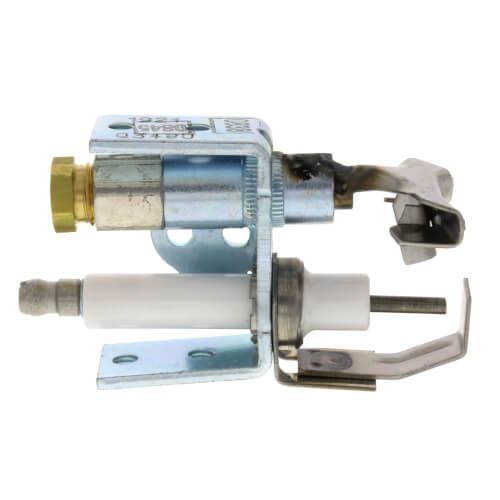

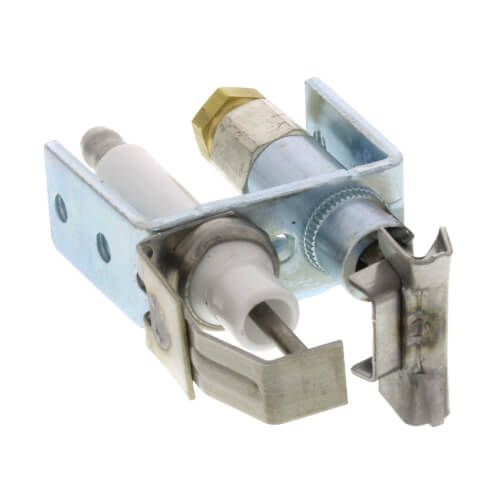

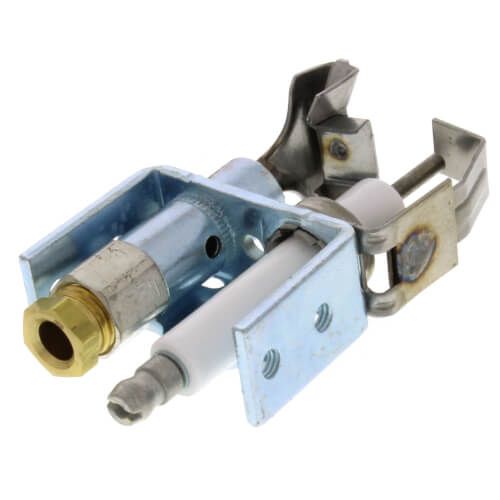

Resideo Q348U1009 - Universal Intermittent Pilot Burner for NG/LP w/ Batwing Style Hood
Brand:
SKU
Q348U1009
These pilot burner/igniter-sensors provide pilot flame ignition and sensing in intermittent pilot systems. They consist of a target type pilot burner with a combination spark igniter and flame sensor mounted in place of the thermocouple.
Used with: S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, S8670E.
Orifices: NE22, KF24, A26, KR14
Fuel Type: Propane,Natural Gas
Aeration: Primary
Compression Fitting Size: 1/4", 1/8" NPT
Compression Fitting Length: 3/4"
Tip Style: Batwing
Direction of Front Tip: Dual Wing
Mount: Universal Mount
Resideo Q348U1009 - Universal Intermittent Pilot Burner for NG/LP w/ Batwing Style Hood
These pilot burner/igniter-sensors provide pilot flame ignition and sensing in intermittent pilot systems. They consist of a target type pilot burner with a combination spark igniter and flame sensor mounted in place of the thermocouple.
Used with: S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, S8670E.
Orifices: NE22, KF24, A26, KR14
Fuel Type: Propane,Natural Gas
Aeration: Primary
Compression Fitting Size: 1/4", 1/8" NPT
Compression Fitting Length: 3/4"
Tip Style: Batwing
Direction of Front Tip: Dual Wing
Mount: Universal Mount
