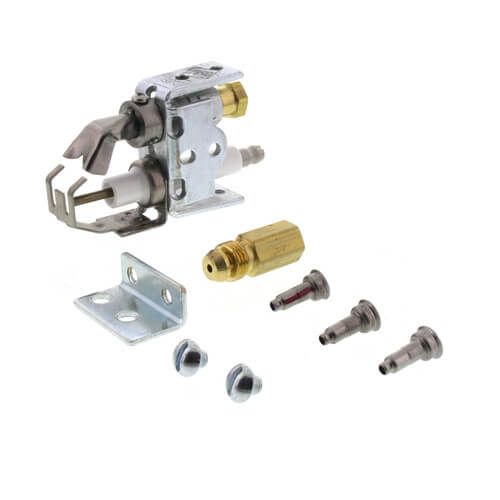

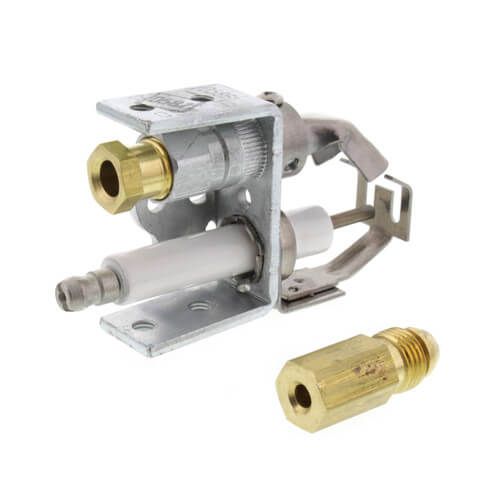

Resideo Q345U1005 - Universal Intermittent Pilot Burner for NG/LP w/ Target Style Hood
Brand:
SKU
Q345U1005
Pilot Burner
Type Non-Primary Aerated, Universal, 1-Tip
Fuel Type Natural/Liquid Propane Gas
Ignition Source Kanthal Flame Rod/Spark Igniter
Mounting Bracket Type U
Fitting Size 1/4 Inch Installed, 1/8 Inch Packed Compression
Orifice Size 0.02 Inch (BCR-20), 0.018 Inch (BCR-18), 0.012 Inch (BBR-12), 0.01 Inch (BBR-11)
Application Intermittent Pilot System
Tip Style Single
Front Tip Direction Adjustable Left/Right/Center
Includes Universal Mounting Bracket, Ceramic Insulated Kanthal Flame Rod/Spark Igniter and Ground Strap
Used On S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, S8670E Intermittent Pilot System
