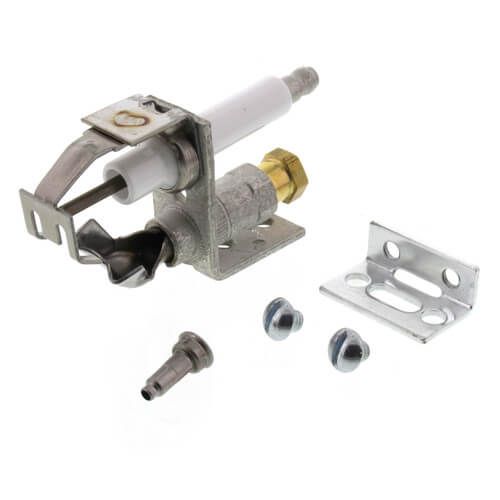

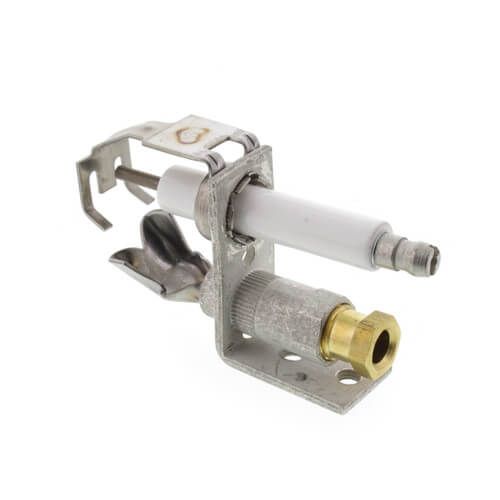

Resideo Q345A1321 - Pilot Burner for Natural Gas with a BCR-18 Orifice (Right Front Tip)
Brand:
SKU
Q345A1321
Pilot Burner
Type Non-Primary Aerated
Fuel Type Natural Gas
Ignition Source Ceramic Insulated Kanthal Flame Rod/Spark
Mounting Bracket Type B
Fitting Size 1/4 Inch Compression
Orifice Size 0.01 Inch (BBR-10), 0.018 Inch (BCR-18)
Size 2-1/16 Inch Width x 3/4 Inch Depth
Application Intermittent Pilot System
Approval CSA
Tip Direction Right
Tip Style Target
Includes Special Mounting Bracket with Screw to Convert B Bracket to A Bracket
Used On S86, S860, S8610, S8670 Intermittent Pilot System
