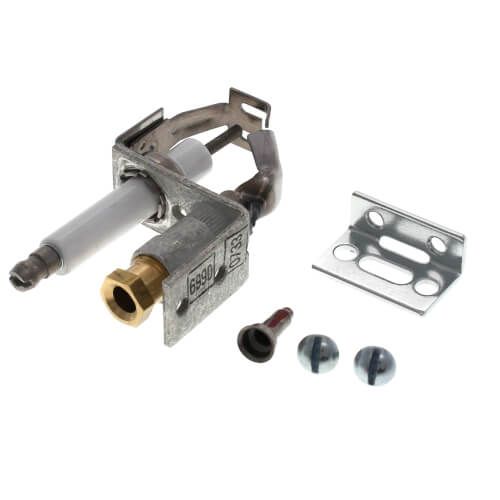

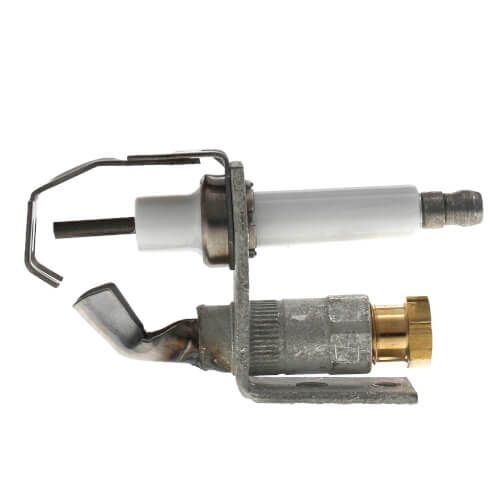

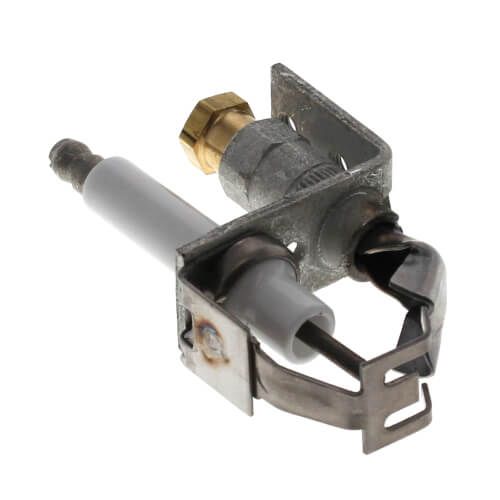

Resideo Q345A1305 - Pilot Burner For Natural Gas
Brand:
SKU
Q345A1305
Pilot Burner
Type Non-Primary Aerated
Fuel Type Natural Gas
Ignition Source Ceramic Insulated Kanthal Flame Rod/Spark
Mounting Bracket Type B
Fitting Size 1/4 Inch Compression
Orifice Size 0.01 Inch (BBR-10), 0.018 Inch (BCR-18)
Size 2-1/16 Inch Width x 3/4 Inch Depth
Application Intermittent Pilot System
Approval CSA
Front Tip Direction (F) Front
Tip Style Target
Includes Igniter, Ground Strap, Flame Sensor
Used On S86, S860, S8610, S8670 Intermittent Pilot System
