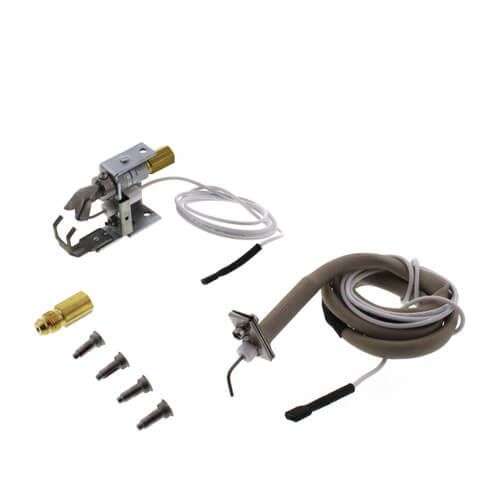

Resideo Q3451U1000 - Universal Intermittent Pilot Burner w/ Target Style Hood & Integral Ignition Wire
Brand:
SKU
Q3451U1000
Pilot Burner
Type Non-Primary Aerated, Universal, 1-Tip
Fuel Type Natural/Liquid Propane Gas
Mounting Bracket Type U
Fitting Size 1/4 Inch Installed, 1/8 Inch Packed Compression
Orifice Size 0.02 Inch (BCR-20), 0.018 Inch (BCR-18), 0.012 Inch (BBR-12), 0.010 Inch (BBR-11), 0.010 Inch (BCR-10)
Application Intermittent Pilot System
Tip Direction Adjustable Left/Right/Center
Includes Orifice, 36/55 Inch Length Lead
Used On Intermittent Pilot System
