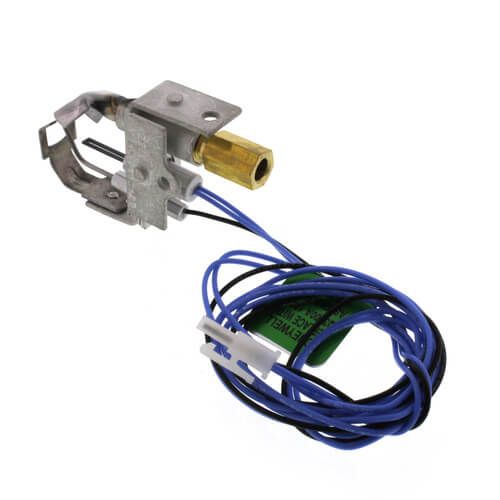

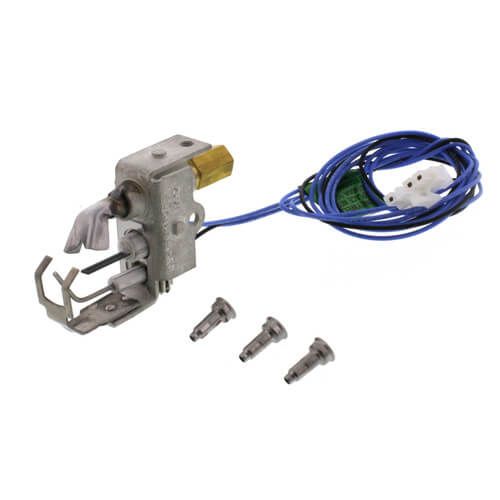

Resideo Q3450C1185 - Pilot Burner for Natural Gas with a BCR-18 Orifice (Left Single Tip Style, "C" Mounting)
Brand:
SKU
Q3450C1185
These SmartValve System pilot burners provide pilot flame ignition and sensing for SV9500/SV9600 Systems. They consist of replaceable igniter-flame rod assembly, bracket assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot flame lights the main burner.
Features:
Features:
Used with SV9500/SV9600 SmartValve System.
Replaceable Igniter-Flame Rod Assembly (Q3400A).
Integral keyed plug provides quick, convenient connection of igniter and sensor to SV9500/SV9600.
Q3450 has front or 20 degree right, left flame pattern.
Natural and LP gas orifices available.
Variety of target styles available.
Variety of mounting brackets available.
CGA Certified: File No. 1029-ABI/CC9203
AGA Design Certified: File No. U70-24A
Fuel Type: Natural Gas
Compression Fitting Size: 1/4"
Compression Fitting Length: 1-1/4"
Orifice: 0.018"
Direction of Front Tip: Left
Tip Style: Single
Aeration: Primary
Lead Wire Length: 30"
Ignition Wire Length: 30"
Pilot BTU: 1000
Used With: SV9501, SV9600
