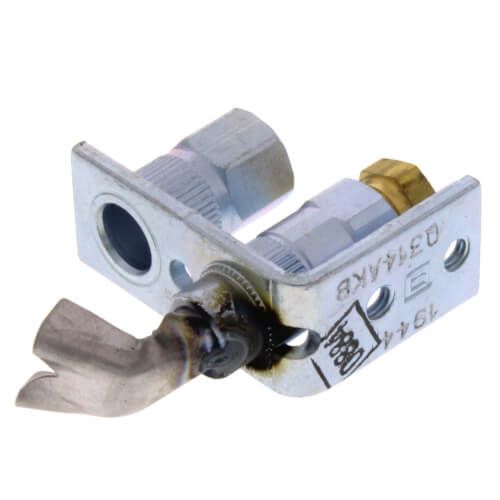

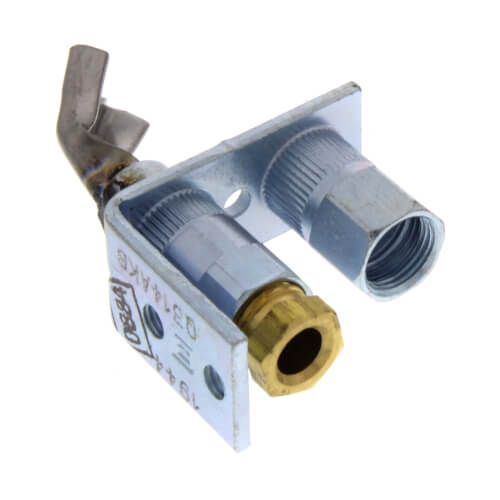

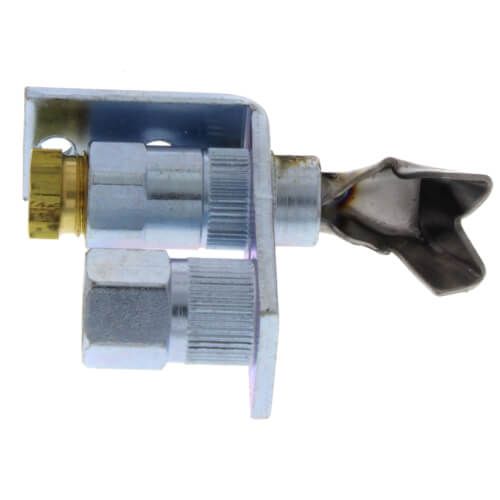

Resideo Q314A6102 - Pilot Burner for Natural or LP Gas w/ a BCR-18 Orifice (Right Single Tip Style)
Brand:
SKU
Q314A6102
Pilot Burner
Type Non-Primary Aerated, Insert Orifice
Fuel Type Natural/Liquid Propane Gas
Mounting Bracket Type B
Fitting Size 1/4 Inch Compression
Orifice Size 0.01 Inch (BBR-10), 0.018 Inch (BCR-18)
Size 1-1/2 Inch Length x 11/16 Inch Width x 1-9/16 Inch Height
Application Standing Pilot
Approval CSA
Tip Direction Right (K)
Tip Style Target
Includes Bracket A Adapter
Used On Thermocouple/Thermopile
