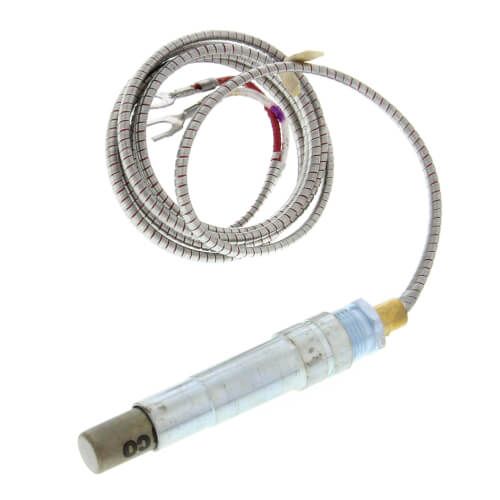

Resideo Q313U3000 - 35" Universal Thermopile, 750 mV with PG9 Adapter and Push-In Clip
Brand:
SKU
Q313U3000
Thermopile Generator
Type Universal
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Drop Out Time 30 Second
Includes 1/2 Inch Attaching Nut, Split Nut, Spade to Quick Connect Adapter, Push-In Clip, PG9 Adapter
Resideo Q313U3000 - 35" Universal Thermopile, 750 mV with PG9 Adapter and Push-In Clip
Thermopile Generator
Type Universal
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Drop Out Time 30 Second
Includes 1/2 Inch Attaching Nut, Split Nut, Spade to Quick Connect Adapter, Push-In Clip, PG9 Adapter
