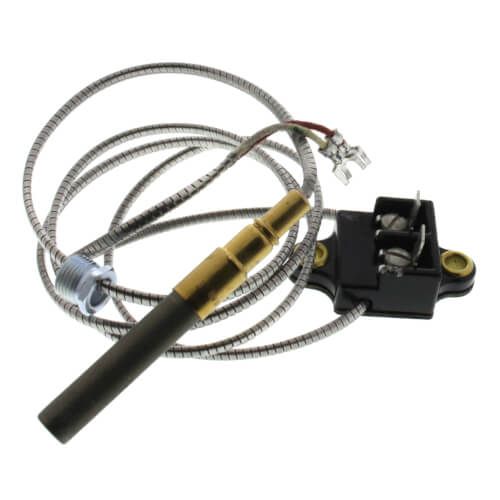

Resideo Q313B1005 - 750 mV Thermopile w/ Spade Terminals Connection and 35" Leads
Brand:
SKU
Q313B1005
Thermopile Generator
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Approval CSA
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Includes Junction Box for Series Hookup with High Limit Switch, 1/2 Inch Thermopile Attaching Nut
Resideo Q313B1005 - 750 mV Thermopile w/ Spade Terminals Connection and 35" Leads
Thermopile Generator
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Approval CSA
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Includes Junction Box for Series Hookup with High Limit Switch, 1/2 Inch Thermopile Attaching Nut
