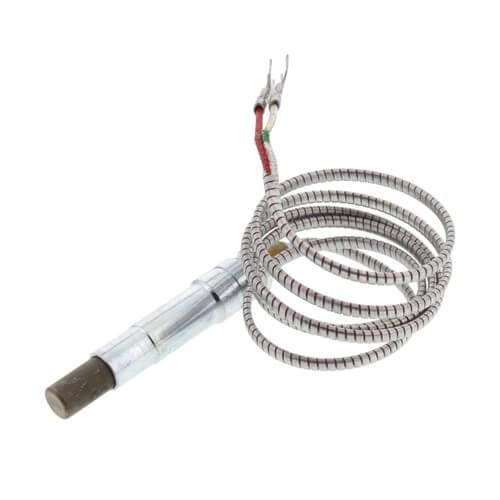

Resideo Q313A1170 - 35" Thermopile Generator w/ PG9 Adapter (750 mV)
Brand:
SKU
Q313A1170
Thermopile Generator
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Includes PG9 Adapter and Attaching Nut
Resideo Q313A1170 - 35" Thermopile Generator w/ PG9 Adapter (750 mV)
Thermopile Generator
Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
Length 35 Inch
Connection Type Spade Terminal
Application Automatic Millivolt Gas Control System
Voltage Rating 750 Millivolt, 600 to 750 Millivolt (Open Circuit Output)
Resistance 2.89 Ohm
Includes PG9 Adapter and Attaching Nut
