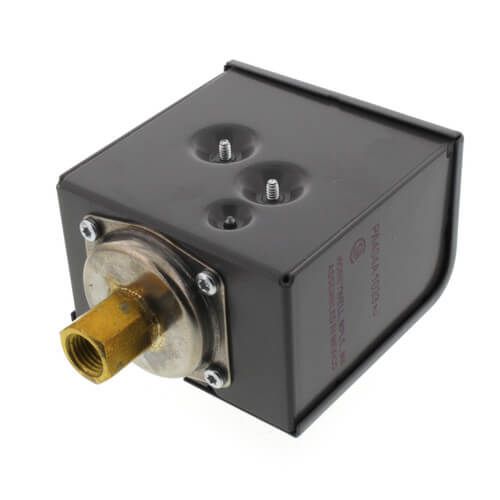

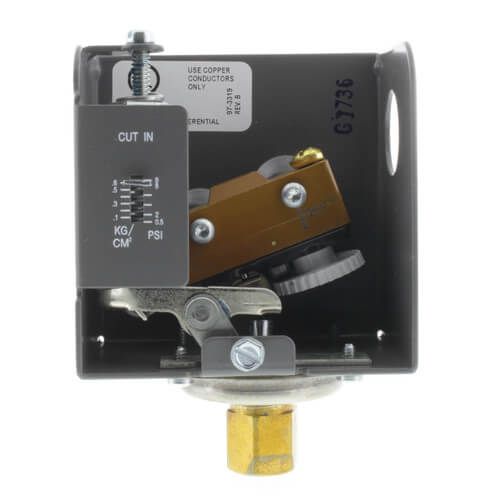

Resideo PA404A1033 - Pressuretrol
Brand:
SKU
PA404A1033
Pressure Controller
Type Additive Differential
Operator Type Diaphragm
Operating Pressure Rating 0.5 to 9 PSI
Differential Pressure Rating 1 to 5 PSI
Pressure Media Steam
Contact Configuration SPST 2 Circuit
Contact Rating 0.25 Amp at 0.25 to 12 Volt DC, 8.3 Amp (Resistive) at 120/240 Volt AC, 7.2 Amp at 277 Volt AC
Connection Type 1/4 Inch Female Threaded
Application Safety Control for Steam Heating Boiler
Approval UL, CSA
Overall Dimension 3-3/8 Inch Width x 2-1/4 Inch Depth x 4-15/32 Inch Height
Case Finish Gray Enamel
