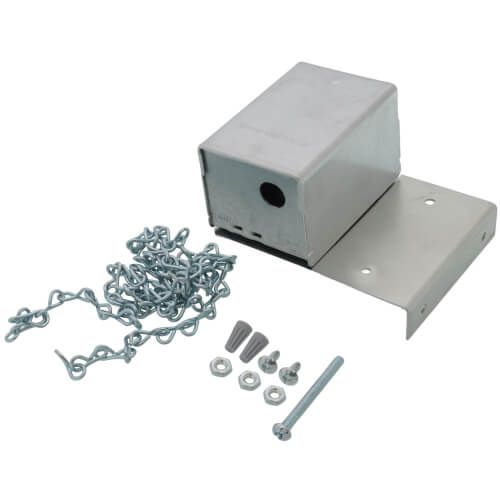

Honeywell Home M847A1080 - 24V 2 Position Damper Actuator w/ Chain Linkage
Brand:
SKU
M847A1080
Draft Damper Actuator
Type SPST, 2-Position, Low Voltage
Operation Type Spring Return
Voltage Rating 24 Volt AC
Maximum AC Voltage 24 Volt
Frequency Rating 60 Hertz
Torque 1.9 Inch-Pound
Angle of Rotation 45 Degree
Size 2-5/8 Inch Width x 3-5/16 Inch Depth x 3-1/2 Inch Height
Operating Temperature 40 to 125 Deg F (Ambient)
Application Draft Damper, Solid Fuel Furnace/Boiler
Mounting Type Foot Mount
Timing 20 Second (Run)
Includes 38 Inch Linkage Chain
