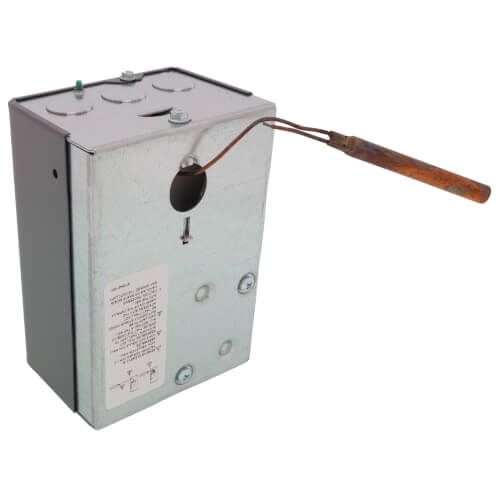

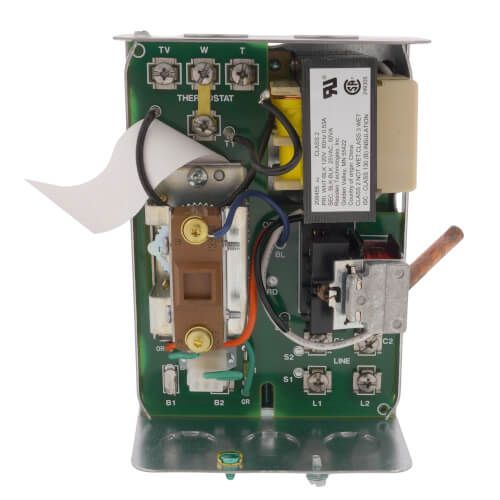

Resideo L8148E1299 - High Limit Vertical Mount Aquastat Relay, 15-Degree(F) differential w/ 50VA Transformer
Brand:
SKU
L8148E1299
Hydronic Control Relay
Item Control Relay
Type Multi-Function
Switch Type SPST (High Limit and Circulator)
Overall Dimensions 4-5/16 Inch Width x 3-1/8 Inch Depth x 6-1/8 Inch Height
Current Rating 0.8 Amp at 24 Volt AC Low Voltage, 0.25 Amp at 0.25 to 12 Volt DC Locked Rotor, 44.4 Amp at 120 Volt AC, 22.2 Amp at 240 Volt AC
Input Supply Rating 120 Volt AC at 60 Hertz
Temperature Rating 180 to 240 Deg F
Pressure Rating 255 PSI (Immersion Well)
Media Handled Gas
Inclusions/Features High Limit Protection, 50 Volt Amp Transformer, Heat Conductive Compound, Molex Plug
Application Hydronic Heating System
Applicable Standard UL, CSA
Insulation Depth 1-1/2 to 3 Inch
Mounting Position Vertical
Connection Type Quick Connect/Screw
Humidity 0 to 95 Percent RH (Non-Condensing)
Differential Temperature 15 Deg F (Fixed)
Capillary Length 4-1/2 Inch
Anticipator Setting 0.2 Amp
