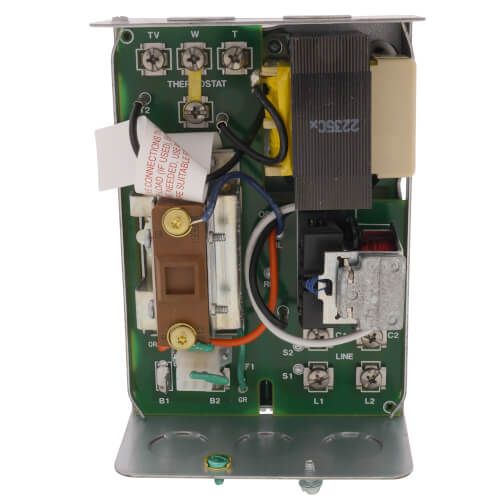

Resideo L8148E1265 - High Limit Vertical Mount Aquastat Relay, 15-Degree (F) Differential
Brand:
SKU
L8148E1265
Application: High Limit
Switch Action: SPST
Electrical Rating: Circulator: 7.4 A @ 120 Vac, Burner: 3.7 A @ 240 Vac, 0.25 A @ 0.25 to 12 Vdc, Burner: 7.4 A @ 120 Vac, Circulator: 3.7 A @ 240 Vac, Burner: 0.8 A max @ 24 Vac
Electrical Ratings (ALR): Circulator: 44.4 A @ 120 Vac, Burner: 22.2 A @ 240 Vac, Burner: 44.4 A @ 120 Vac, Circulator: 22.2 A @ 240 Vac
Temperature Range (F): 180°F to 240°F
Max Temp Differential: 15°F
Differential: Fixed
Height: 6-1/8"
Width: 4-3/8"
Depth (Inches): 3-1/8"
Operating Humidity: 0% to 95% (non-condensing)
Mount: Vertical
Max Ambient Temp (°F): 77F with 1.4A 24V Load, 150F with 1.2A 24V Load
Connection Type: Quick-Connect
Capillary Length: 4-1/2"
Anticipator Rating: 0.2 A
Voltage: 120v
Frequency: 60 Hz
Max Pressure (PSI): 255 (Immersion Well)
