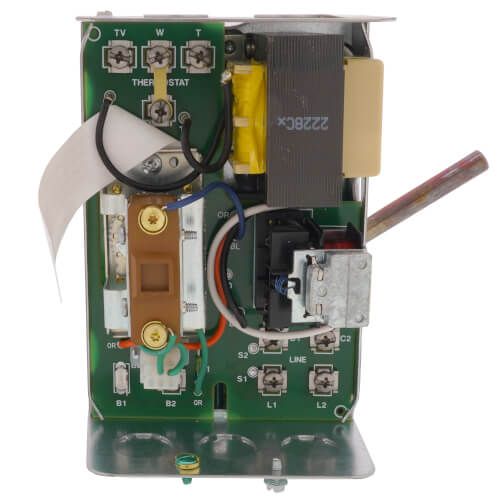

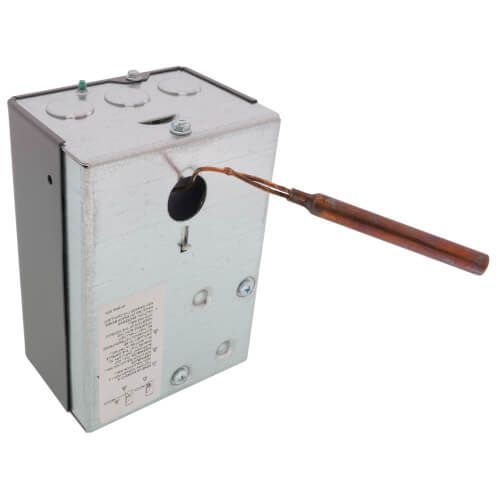

Resideo L8148E1257 - 140-240F AquaStat Relay w/ Vent Damper Connection
Brand:
SKU
L8148E1257
Aquastat Relay
Type 4-1/2 Inch Length Capillary, High Limit, Vertical Well Immersion
Temperature Range 140 to 240 Deg F (High Limit)
Maximum Temperature Rating 150 Deg F with 1.2 Amp 24 Volt/77 Deg F with 1.4 Amp 24 Volt (Load)
Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor (Burner/Circulator), 0.8 Amp at 24 Volt AC (Low Voltage), 0.25 Amp at 1/4 to 12 Volt DC (Millivoltage), 0.2 Amp (Anticipator Setting)
Contact Configuration SPST (High Limit and Circulator)
Connection Type 1/2 Inch Conduit, Quick Connect/Screw
Application Circulator Motor, Burner
Approval UL, CSA
Overall Dimension 6-1/8 Inch Width x 3-1/8 Inch Depth x 4-5/16 Inch Height
Differential Temperature Rating 15 Deg F
Maximum Safe Operating Pressure Rating 255 PSI
Humidity 0 to 95 Percent Relative, Non-Condensing
Insulation Depth 1-1/2 to 3 Inch
