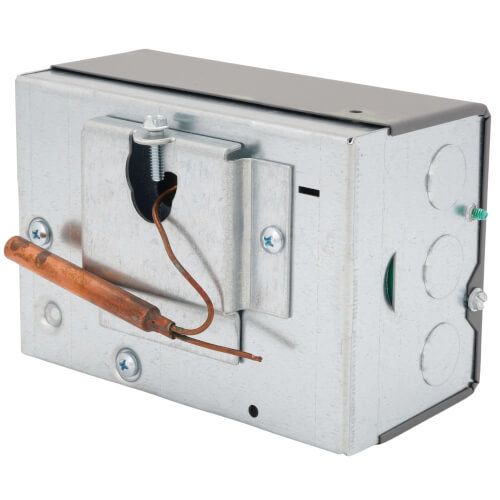

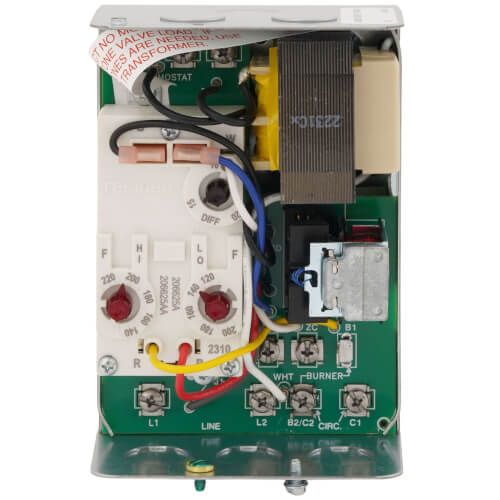

Resideo L8124L1011 - High Limit Triple Horizontal Mount Aquastat Relay, High = 10-Degree(F) Diff, Low = 10-25-Degree(F) Adj Differential
Brand:
SKU
L8124L1011
Aquastat Relay
Type 3/8 Inch Diameter x 2-7/8 Inch Length Sensing Element, Direct Horizontal Well Immersion, Triple, High Limit
Temperature Range 130 to 240 Deg F (High Limit), 110 to 220 Deg F (Low Limit)
Maximum Temperature Rating 150 Deg F (Switch), 265 Deg F (Sensing Element)
Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor (Burner/Circulator)
Contact Configuration SPST
Connection Type 1/2 Inch Conduit, Quick Connect/Screw
Application Hydronic Heating System
Approval UL, CSA
Overall Dimension 6-1/8 Inch Width x 3-1/16 Inch Depth x 4-3/8 Inch Height
Differential Temperature Rating 10 Deg F Fixed (High Limit), 10 to 25 Deg F Adjustable (Low Limit)
Pressure Rating 200 PSI (Outside of Immersion Well), 100 PSI (Capsule if Inserted Directly)
Humidity Range 0 to 95 Percent Relative, Non-Condensing
